SB3200 - SCHOTTKY RECTIFIER

Product Overview

SMC Diode

Part number	SB3200
Manufacturer	SMC Diode
File Size	508.47 KB
Description	SCHOTTKY RECTIFIER
Datasheet	SB3200 Datasheet

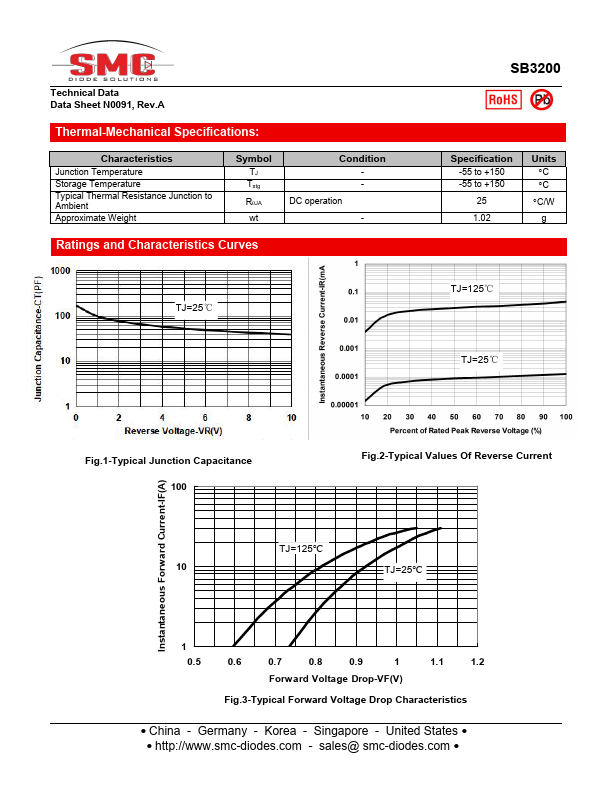

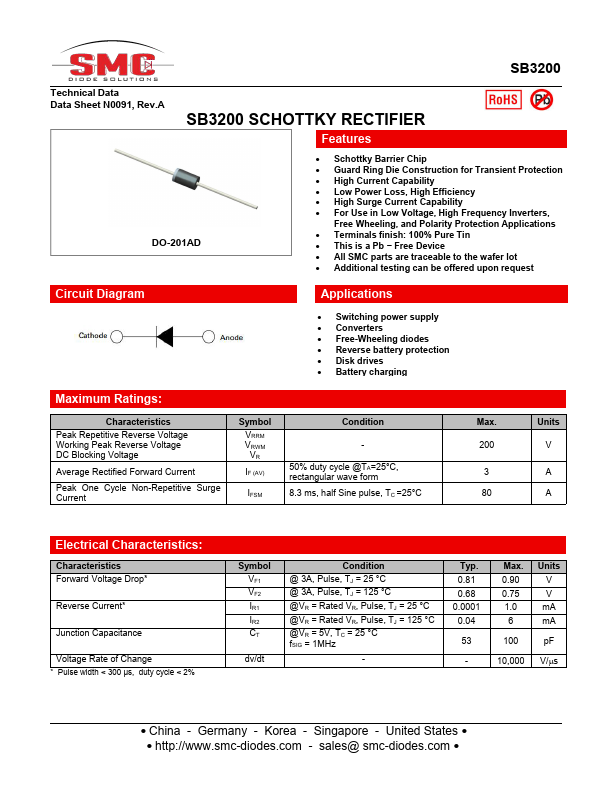

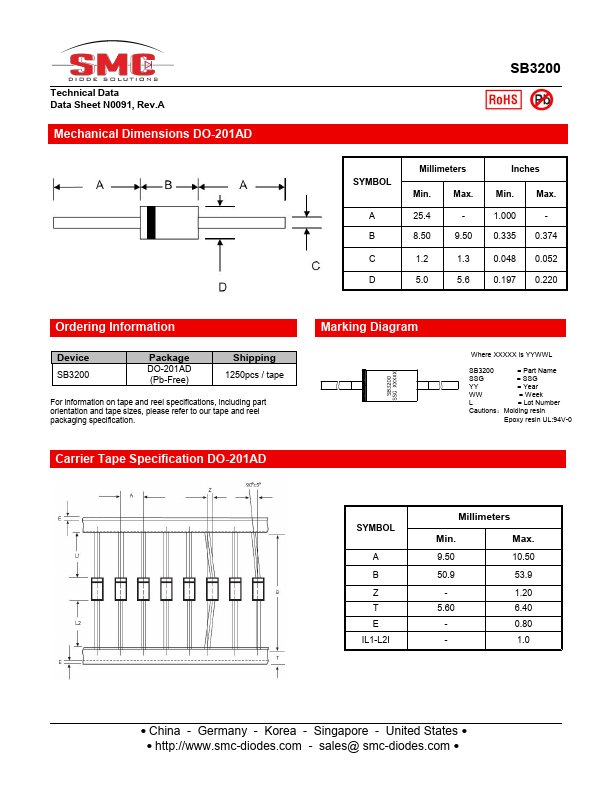

Additional preview pages of the SB3200 datasheet.

DO-201AD.
Schottky Barrier Chip.
Guard Ring Die Construction for Transient Protection.
High Current Capability.
Low Power Loss, High Efficiency.
High Surge Current Capability.
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection.
