SB3100 SCHOTTKY RECTIFIER

SMC Diode

SB3100 Description

SB3100 Technical Data Data Sheet N0089, Rev.A SB3100 SCHOTTKY RECTIFIER .

SB3100 Features

* DO-201AD
* Schottky Barrier Chip
* Guard Ring Die Construction for Transient Protection
* High Current Capability
* Low Power Loss, High Efficiency
* High Surge Current Capability
* For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection App

SB3100 Applications

* Terminals finish: 100% Pure Tin
* This is a Pb
* Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request Circuit Diagram Applications
* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse

📥 Download Datasheet

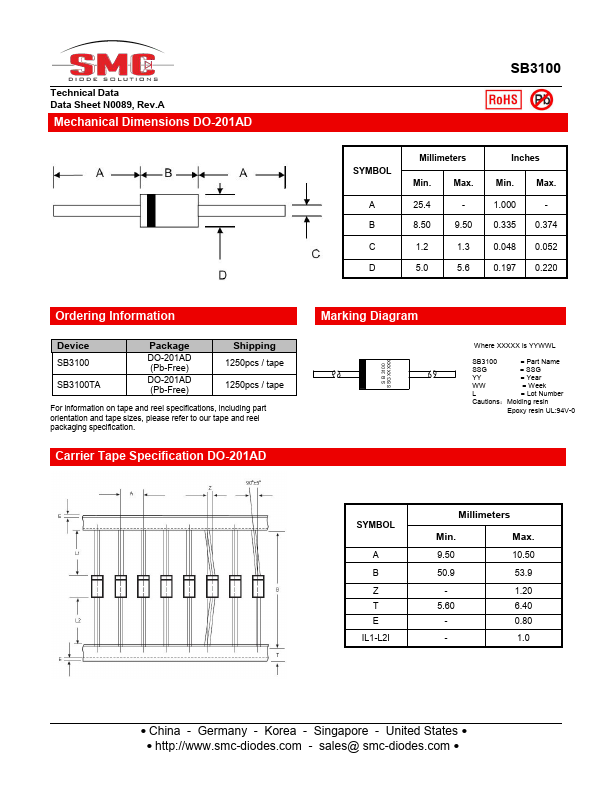

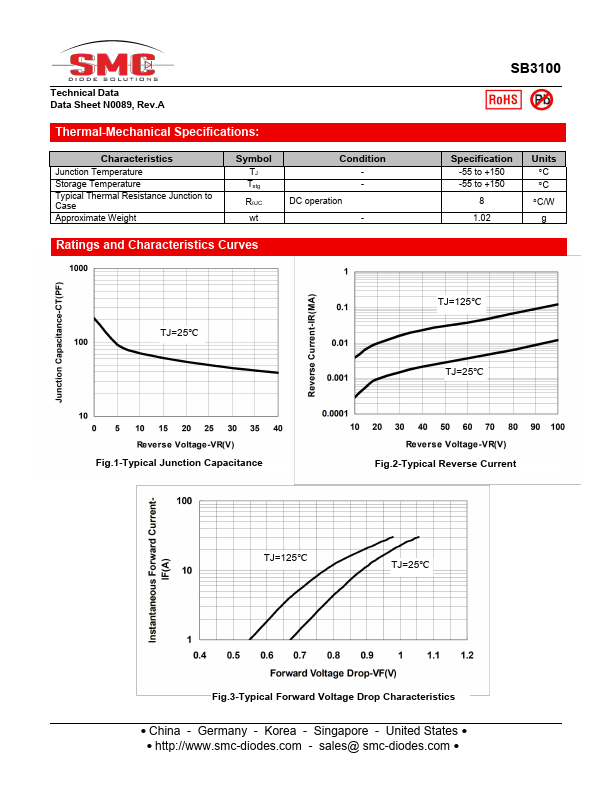

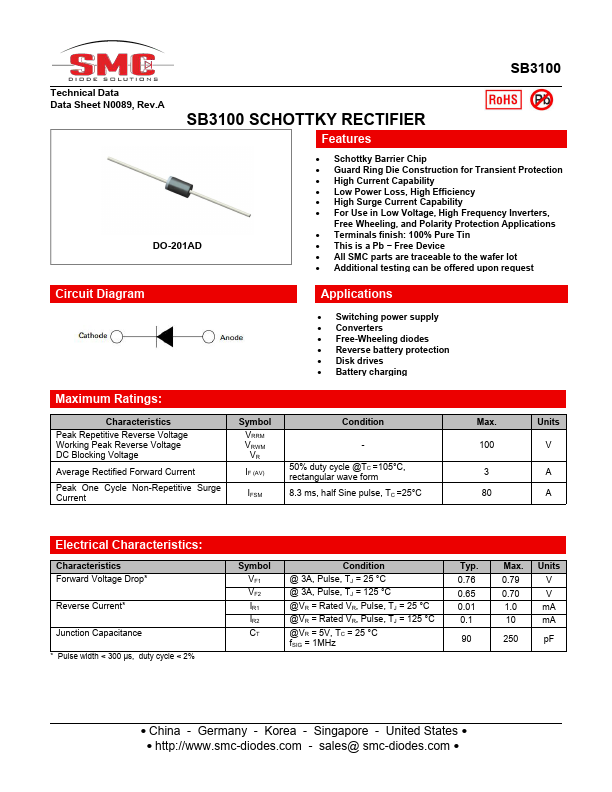

SB3100 Datasheet Preview — Preview of SB3100 PDF

Datasheet Details

Part number: SB3100
Manufacturer: SMC Diode
File Size: 871.42 KB
Datasheet: SB3100-SMCDiode.pdf
Description: SCHOTTKY RECTIFIER
