SBRD10200 - SCHOTTKY RECTIFIER

SBRD10200 Description

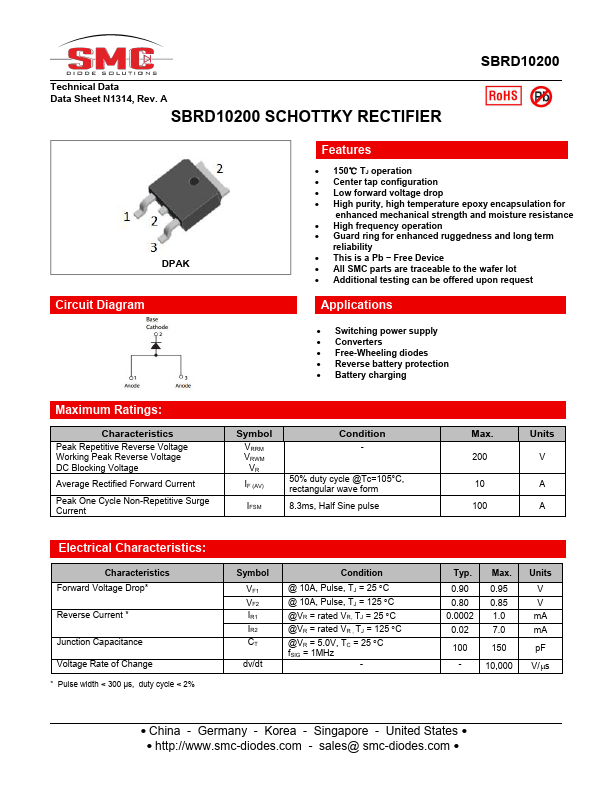

Technical Data Data Sheet N1314, Rev.A SBRD10200 SCHOTTKY RECTIFIER SBRD10200 DPAK Circuit Diagram .

SBRD10200 Features

* 150℃ TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability

SBRD10200 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Battery charging Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Rep

📥 Download Datasheet

Preview of SBRD10200 PDF

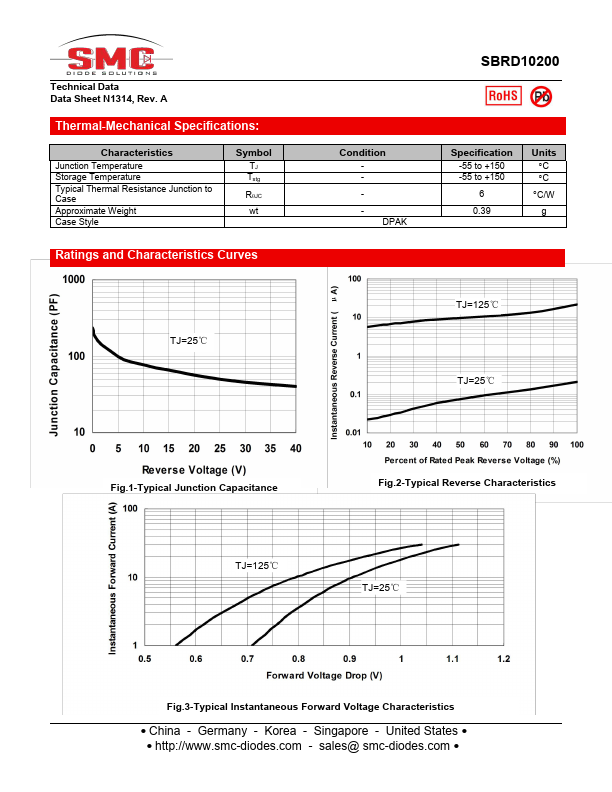

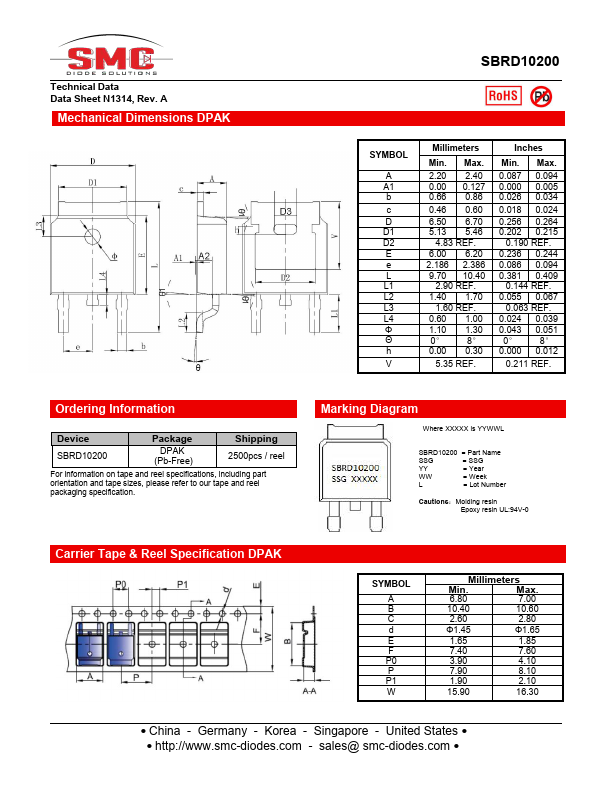

datasheet Preview Page 2 datasheet Preview Page 3
