SBR20100CT SCHOTTKY RECTIFIER

SBR20100CT Description

SBR20100CT Technical Data Data Sheet N0911, Rev.A SBR20100CT SCHOTTKY RECTIFIER .

SBR20100CT Features

* LKLLKJHYJ, TO-220AB
* 150C TJ operation
* Center tap configuration
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced
* mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness

SBR20100CT Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current(

📥 Download Datasheet

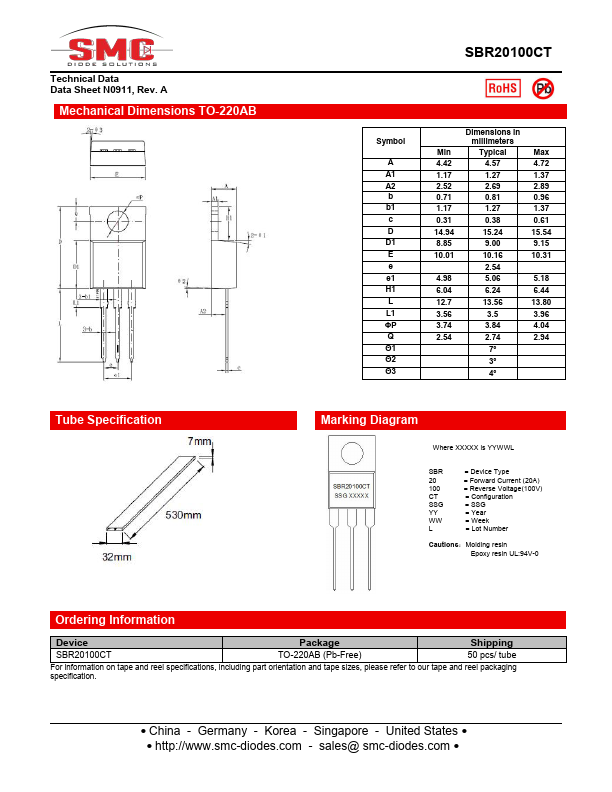

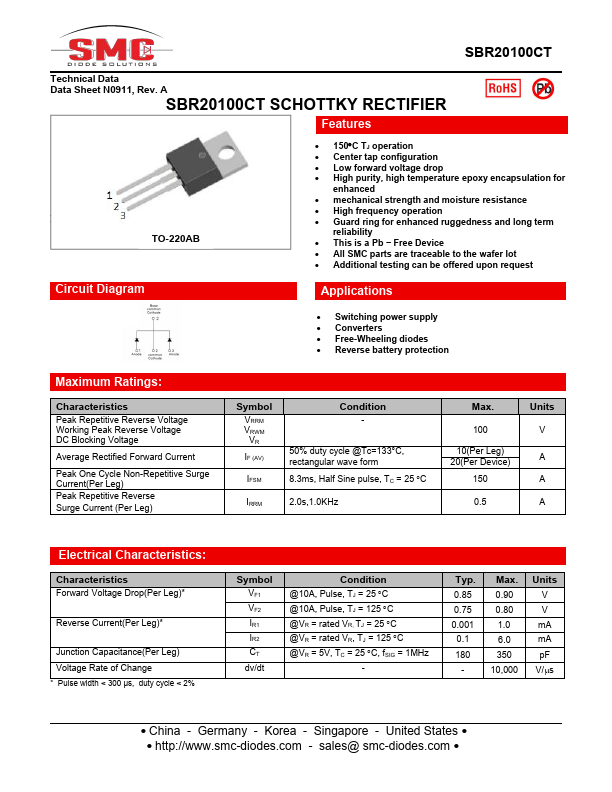

Preview of SBR20100CT PDF

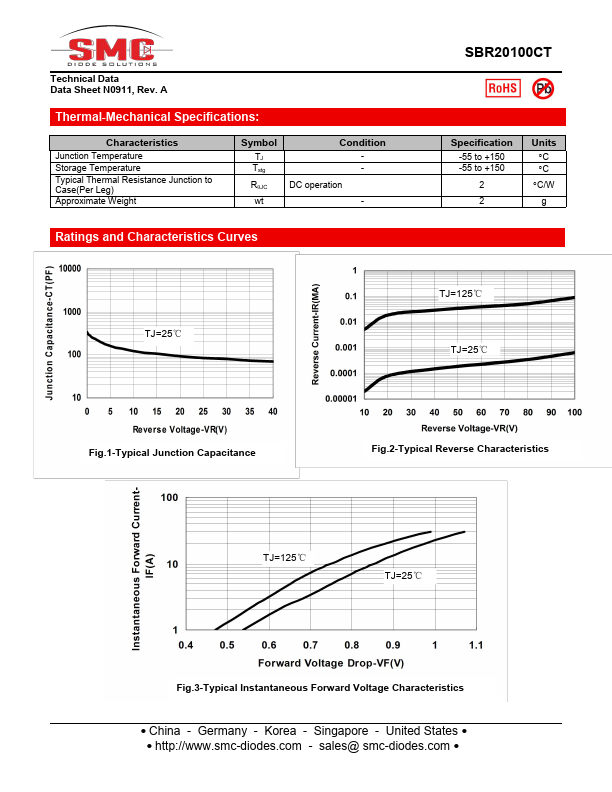

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SBR20100CT
Manufacturer
SMC Diode
File Size
839.26 KB
Datasheet
SBR20100CT-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
