SK24A - SCHOTTKY RECTIFIER

SK24A Description

Technical Data Data Sheet N0931, Rev.A SK24A SCHOTTKY RECTIFIER SK24A SMA .

SK24A Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term
* reliability
* Green products in compliance the ROHS directive
* Terminals finish: Tin Lead-free plated
* This is a Hal

SK24A Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings(limiting values, TC =25°C unless otherwise specified) Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward

📥 Download Datasheet

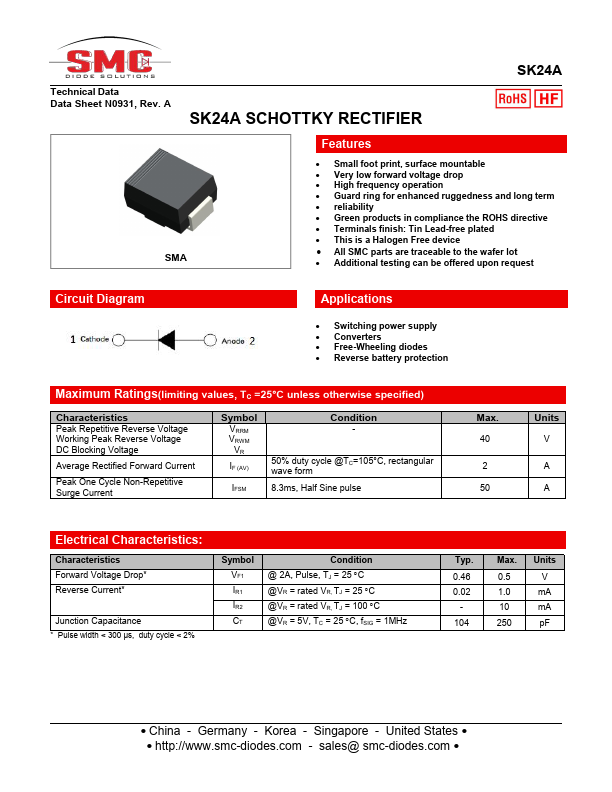

Preview of SK24A PDF

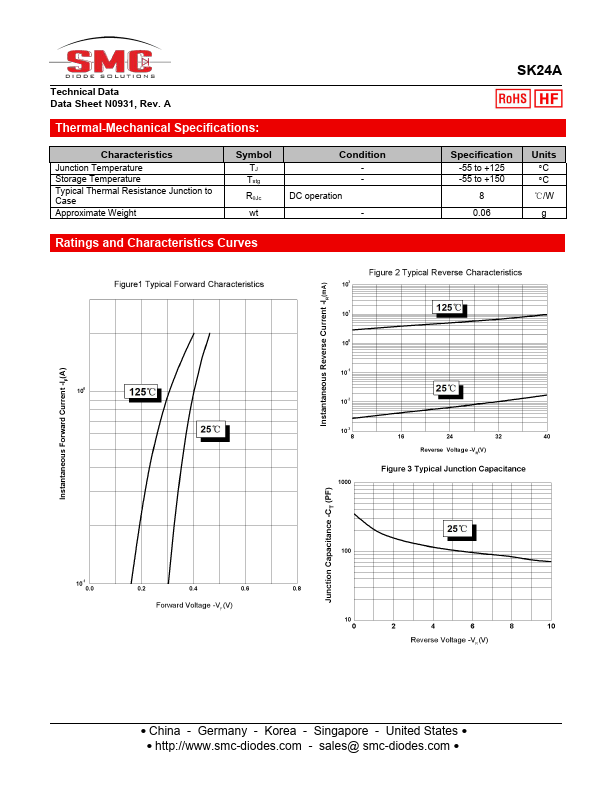

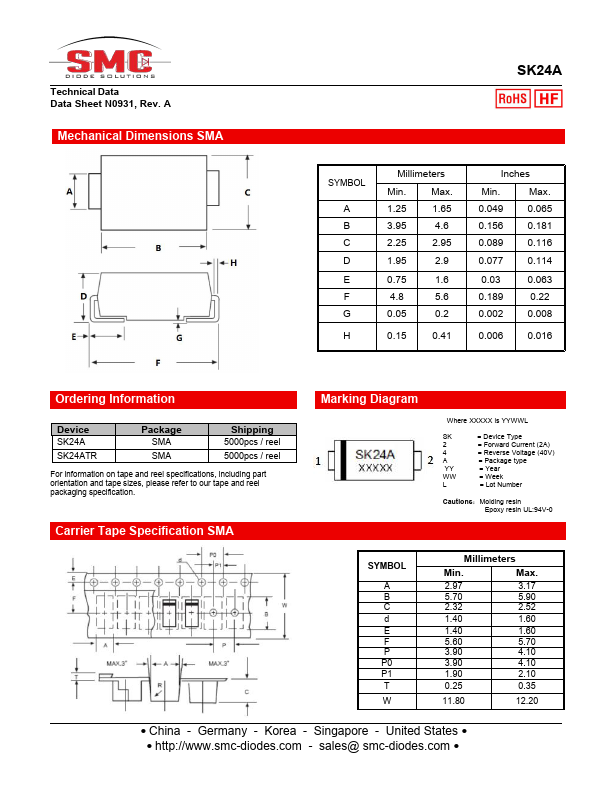

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK24A
Manufacturer
SMC Diode
File Size
297.99 KB
Datasheet
SK24A-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
