SK33A SCHOTTKY RECTIFIER

SK33A Description

Technical Data Data Sheet N0934, Rev.A SK33A SCHOTTKY RECTIFIER SK33A SMA .

SK33A Features

* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term
* reliability
* Green products in compliance the ROHS directive
* This is a Pb - Free device
* All SMC parts are traceab

SK33A Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Symbol VRRM VRWM VR IF (AV) IFSM Condition - 50% duty cycle @TA=75°C, rectangular wave form 8.3ms, Half Sine pulse, Tc = 25 C Max. 30 3 100 Units V A A Electrical Characteristics: Characte

📥 Download Datasheet

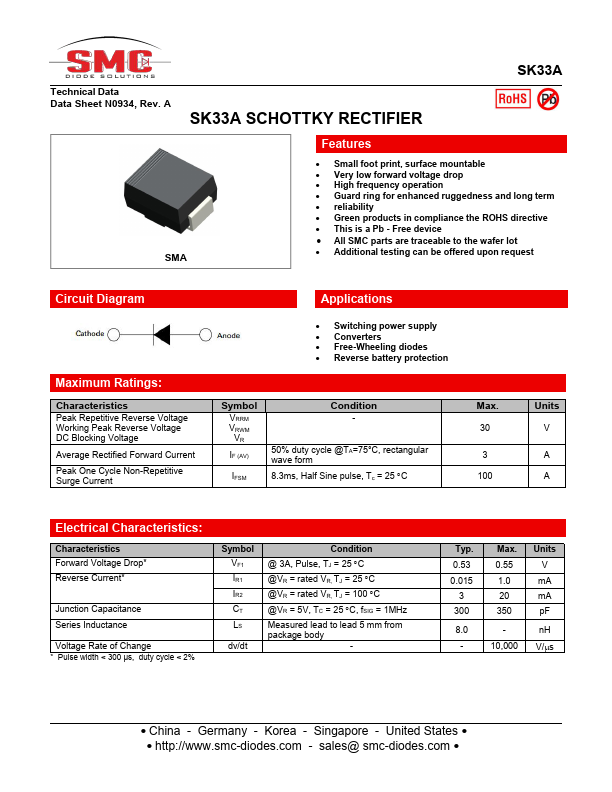

Preview of SK33A PDF

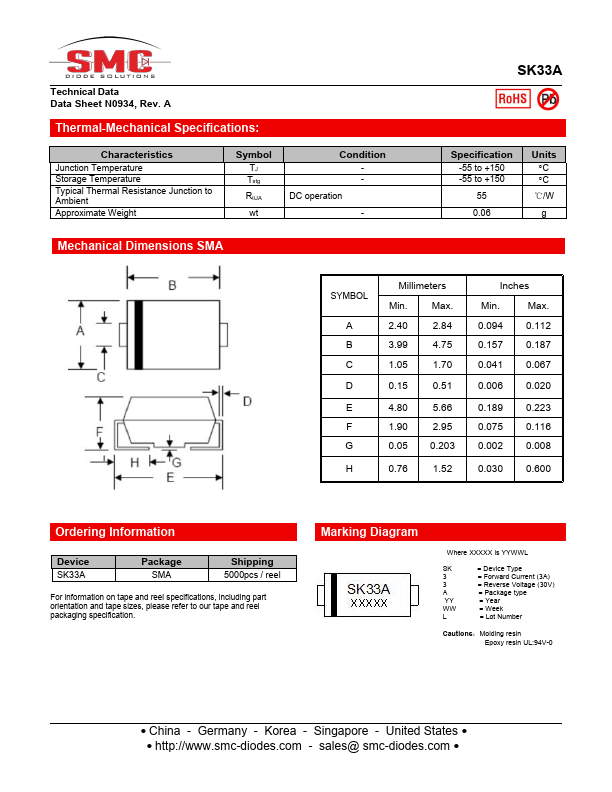

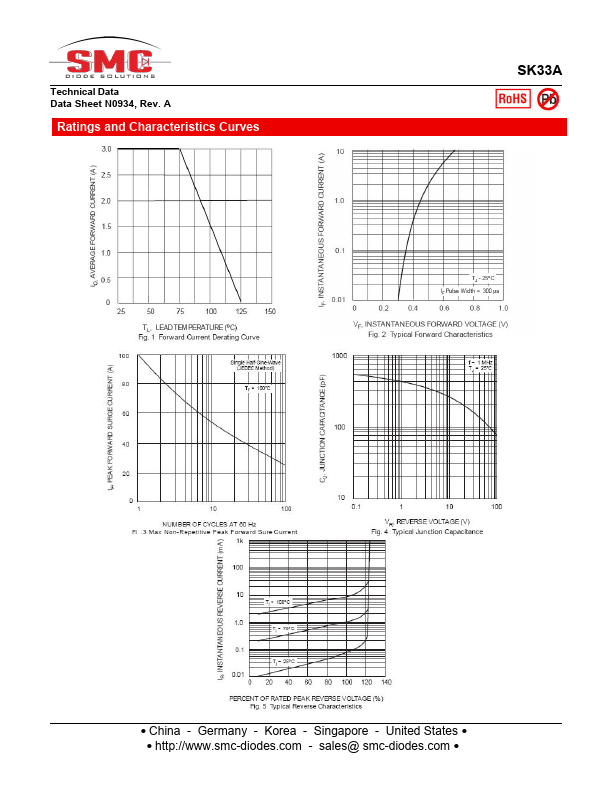

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK33A
Manufacturer
SMC Diode
File Size
301.13 KB
Datasheet
SK33A-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
