SK315A SCHOTTKY RECTIFIER

SK315A Description

Technical Data Data Sheet N1971, Rev.- SK315A SCHOTTKY RECTIFIER SK315A .

SK315A Features

* SMA
* Small foot print, surface mountable
* Very low forward voltage drop
* High frequency operation
* Guard ring for enhanced ruggedness and long term
* reliability
* Green products in compliance the ROHS directive
* This is a Pb - Free device
* All SMC parts are t

SK315A Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle Non-Repetitive Surge Current

📥 Download Datasheet

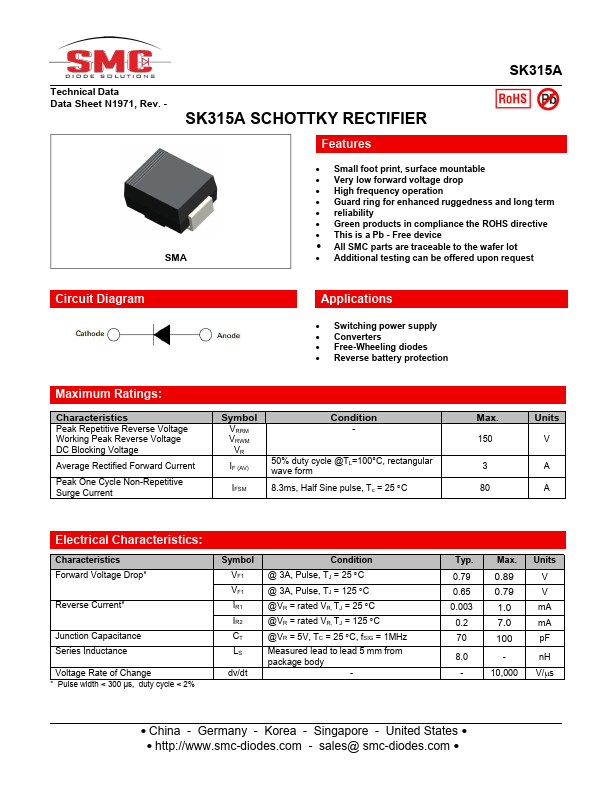

Preview of SK315A PDF

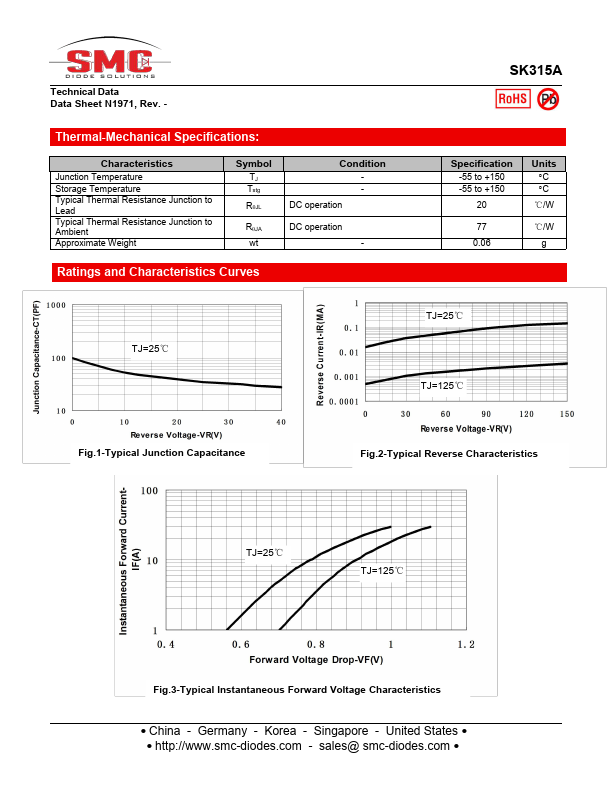

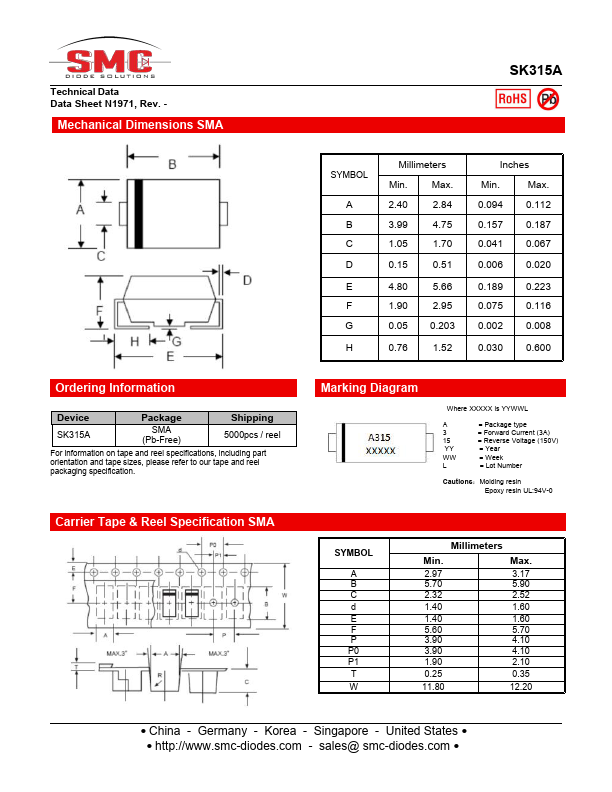

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SK315A
Manufacturer
SMC Diode
File Size
749.66 KB
Datasheet
SK315A-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
