ST1060 - SCHOTTKY RECTIFIER

ST1060 Description

Technical Data Data Sheet N1415, Rev.A ST1060 STB1060 STD1060 STF1060 ST1060/STB1060/STF1060/STD1060 SCHOTTKY RECTIFIER Applications .

ST1060 Features

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection ST1060 STB1060
* 150°C TJ operation
* Center tap configuration
* Ultralow forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical stre

📥 Download Datasheet

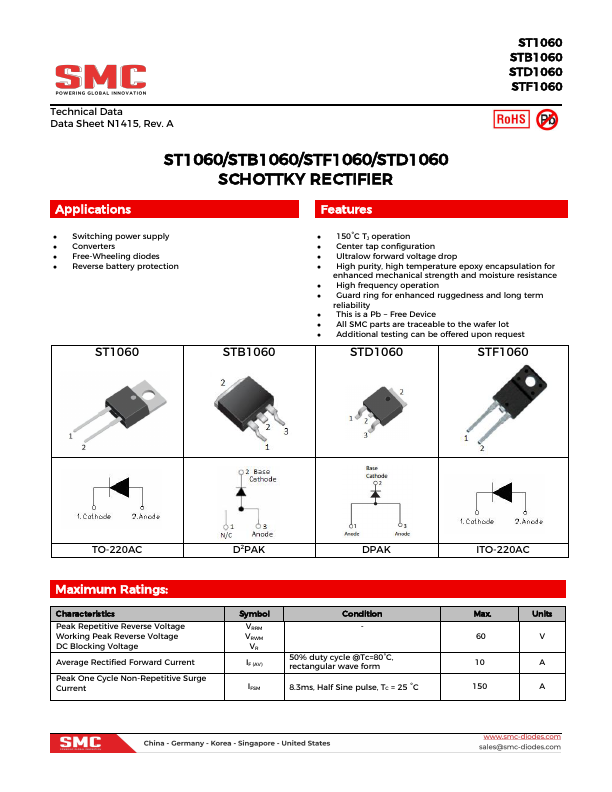

Preview of ST1060 PDF

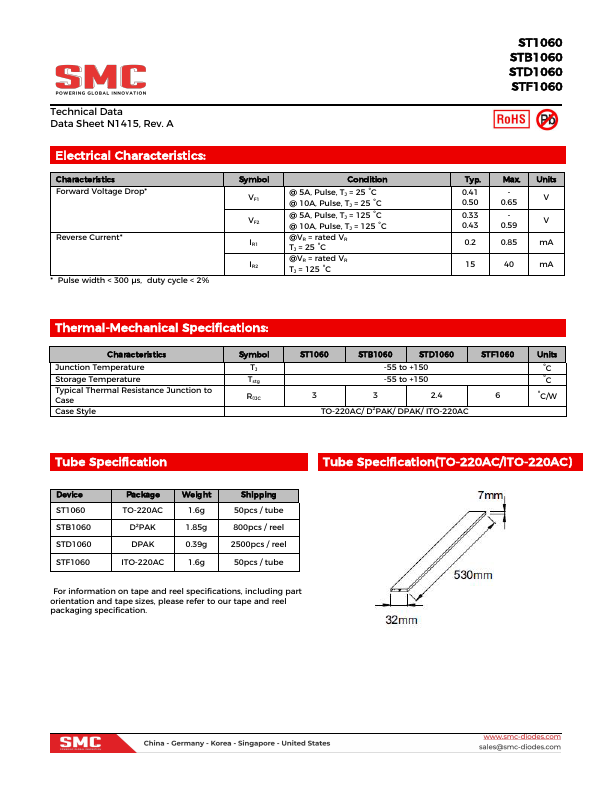

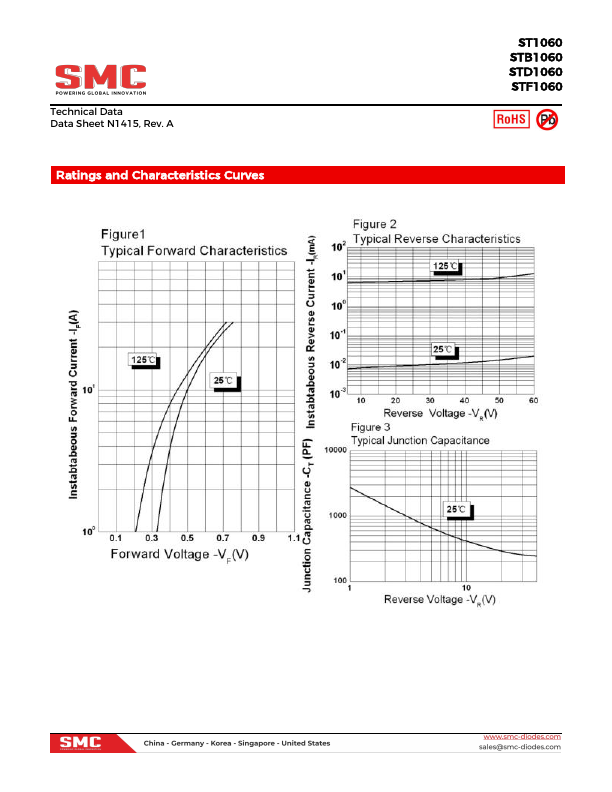

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST1060
Manufacturer
SMC Diode
File Size
1.56 MB
Datasheet
ST1060-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
