ST12100S - SCHOTTKY RECTIFIER

ST12100S Description

Technical Data Data Sheet N1041, Rev.E ST12100S SCHOTTKY RECTIFIER ST12100S TO-277B .

ST12100S Features

* 150°C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Trench MOS Schottky technology
* “-A” is an AEC-Q101 qualified device
* This is a Halo

ST12100S Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection Symbol VRRM VRWM VR IF (AV) IFSM Condition - 50% duty cycle @TC=80°C, rectangular wave form 8.3ms, Half Sine pulse, TJ = 25 °C Max. 100 12 200 Units V A A Electrical Characteristics: Charac

📥 Download Datasheet

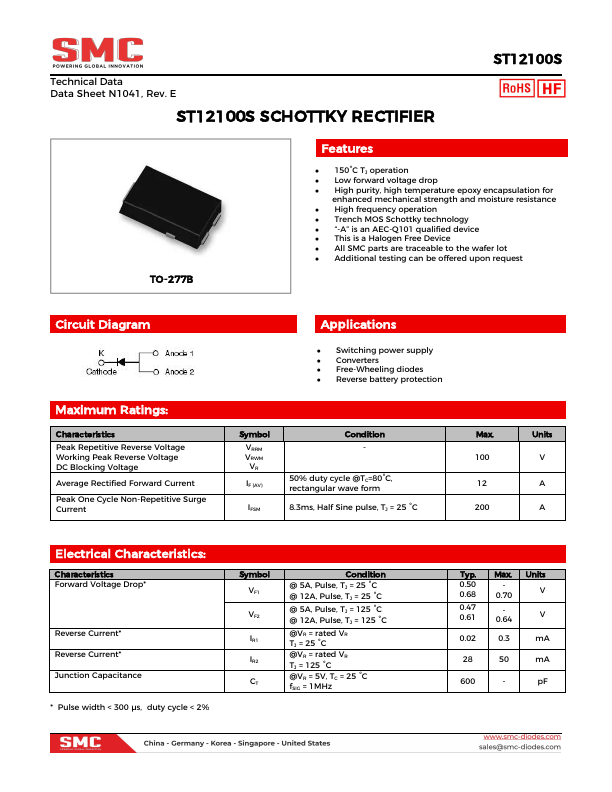

Preview of ST12100S PDF

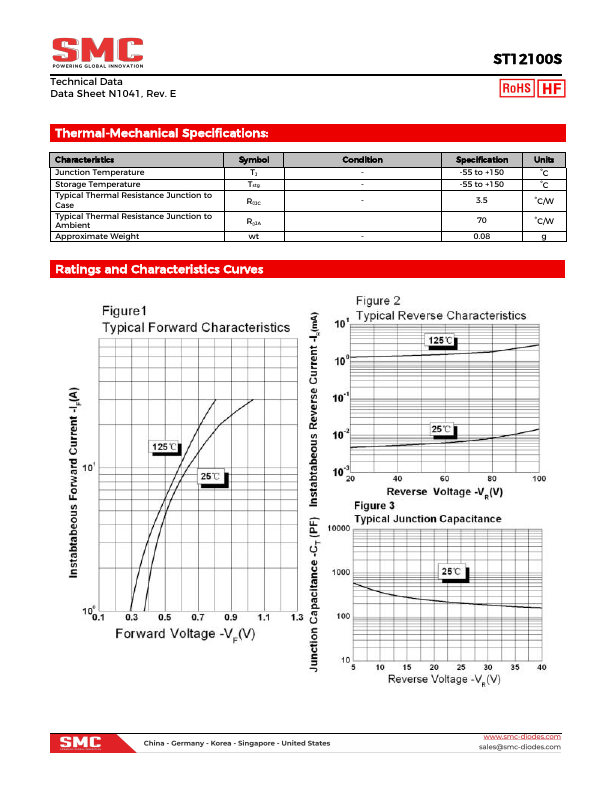

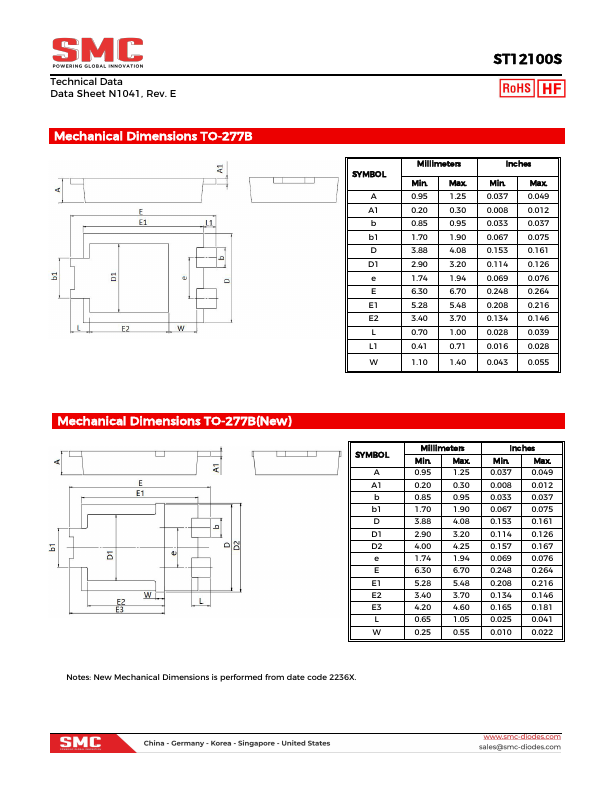

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ST12100S
Manufacturer
SMC Diode
File Size
558.52 KB
Datasheet
ST12100S-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
