CK1A40-PS Clamp Cylinder

Single knuckle joint Double knuckle joint (Knuckle pin, Cotter pin, Flat washer are equipped as a standard.) Parts no. CK1A/CKG1A series CK1B/CKG1B series CKB-I04 CKB-IA04 CKA-Y04 CKA-YA04 CK-B04 CK-D04 CK-L04 CKA-K075 CKA-K100 CKA-K150 * * * CKB-Y04 CKB-YA04 I IA Y YA B D .

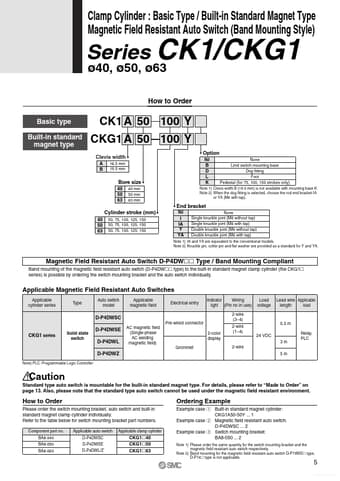

Clamp Cylinder : Basic Type / Built-in Standard Magnet Type Magnetic Field Resistant Auto Switch (Band Mounting Style) Series CK1/CKG1 ø40, ø50, ø63 How to Order Basic type Built-in standard magnet type CK1 A 50 100 Y CKG1 A 50 100 Y Clevis width A B 16.5 mm 19.5 mm Option Nil Bore size 40 50 63 40 mm 50 mm 63 mm Nil B D L K None Limit switch mounting base Dog fitting Foot Pedestal (for 75, 100, 150 strokes only) Note 1) Clevis width B (19.5 mm) is not available with mounting base K. Note.

CK1A40-PS Features

* erial: Rolled steel Option symbol Applicable clamp cylinder CK

* 1A series CK

* 1B series 60 CK-L04 L Note) A spring washer for the mounting bolt (hexagon socket head cap screw) will be attached as a standard for the foot bracket. Pedestal KZZ
