S07C - Surface Mount Rectifiers

Product Overview

📥 Download Datasheet

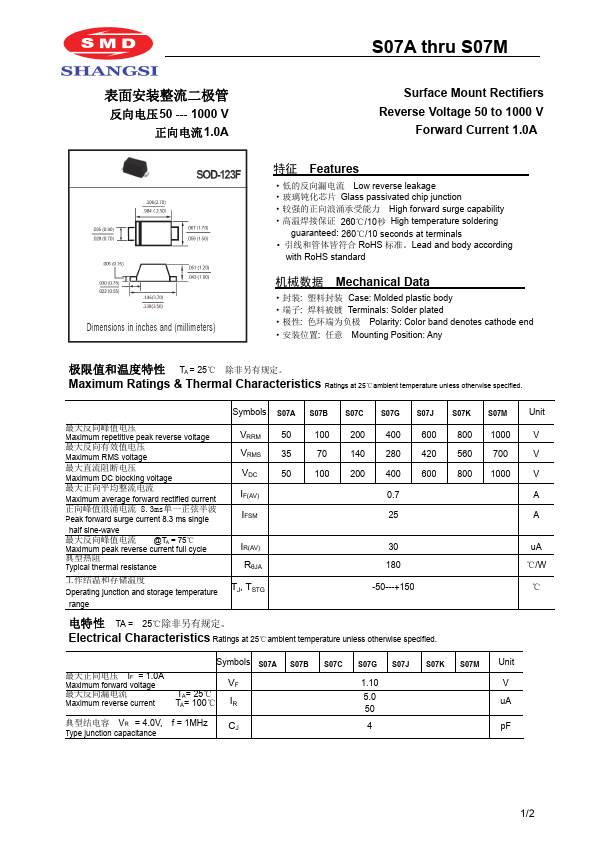

S07C Surface Mount Rectifiers by SMD - Datasheet Preview — Datasheet preview – S07C

Datasheet Details

Part number	S07C
Manufacturer	SMD
File Size	525.71 KB
Description	Surface Mount Rectifiers
Datasheet	S07C Datasheet
Note	This datasheet PDF includes multiple part numbers: S07C, S07A. Please refer to the document for exact specifications by model.

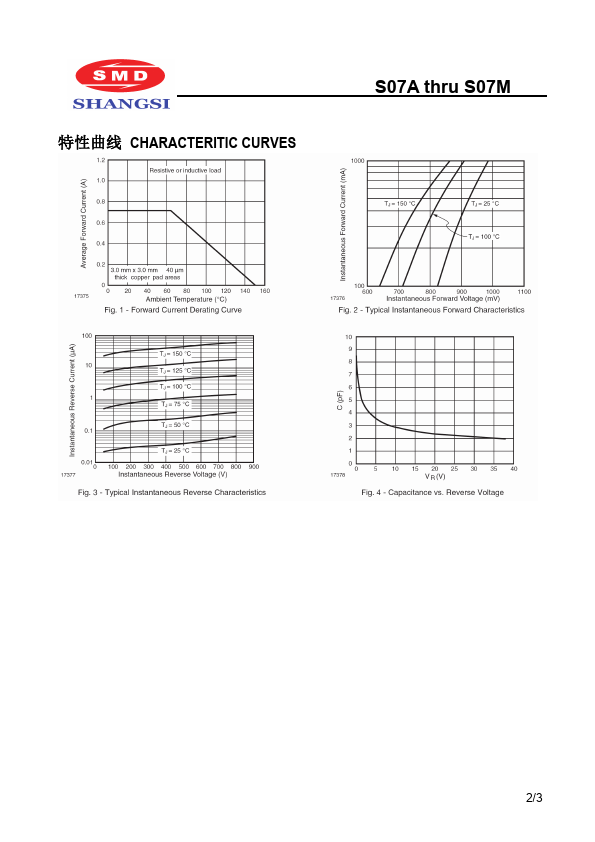

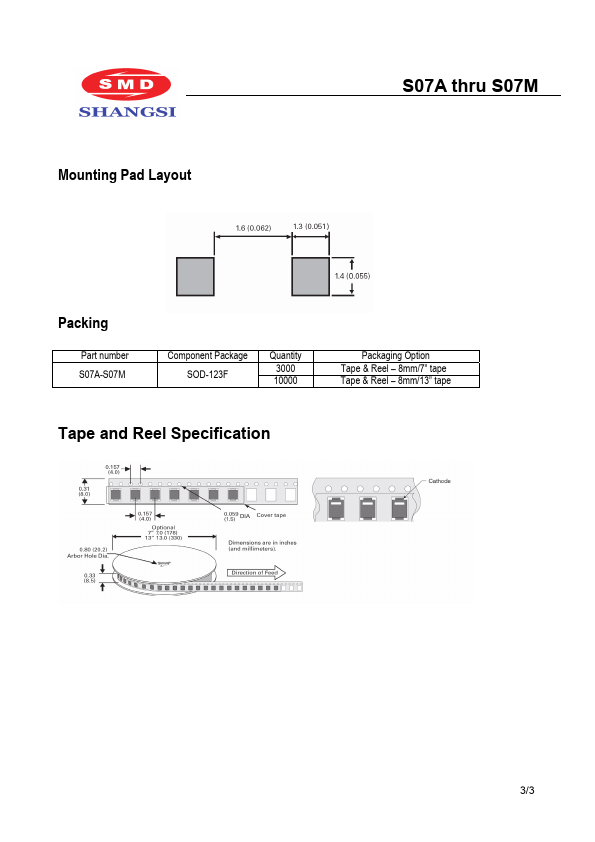

Additional preview pages of the S07C datasheet.

Product details

Features

Low reverse leakage.
Glass passivated chip junction.
High forward surge capability.
260℃/10 High temperature soldering guaranteed: 260℃/10 seconds at terminals.
RoHS 。Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characteristics Ratings at 25℃ambient temperature unless.
