S07K - Surface Mount Rectifiers

Product Overview

📥 Download Datasheet

S07K Surface Mount Rectifiers by SMD - Datasheet Preview — Datasheet preview – S07K

Datasheet Details

Part number	S07K
Manufacturer	SMD
File Size	525.71 KB
Description	Surface Mount Rectifiers
Datasheet	S07K Datasheet
Note	This datasheet PDF includes multiple part numbers: S07K, S07A. Please refer to the document for exact specifications by model.

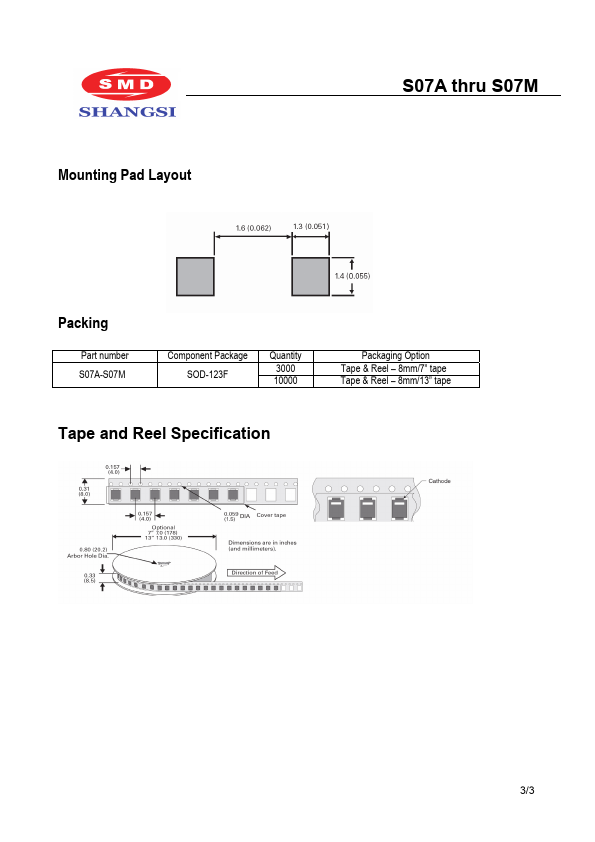

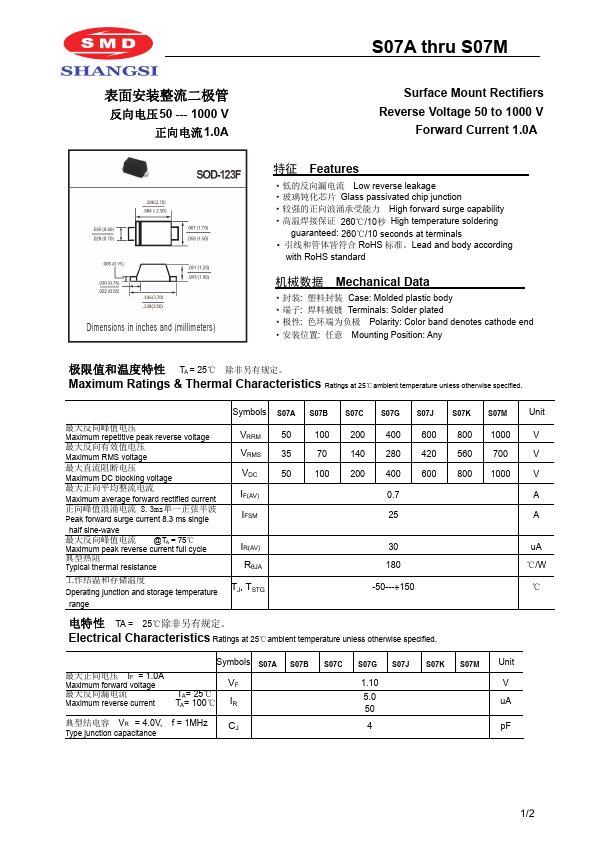

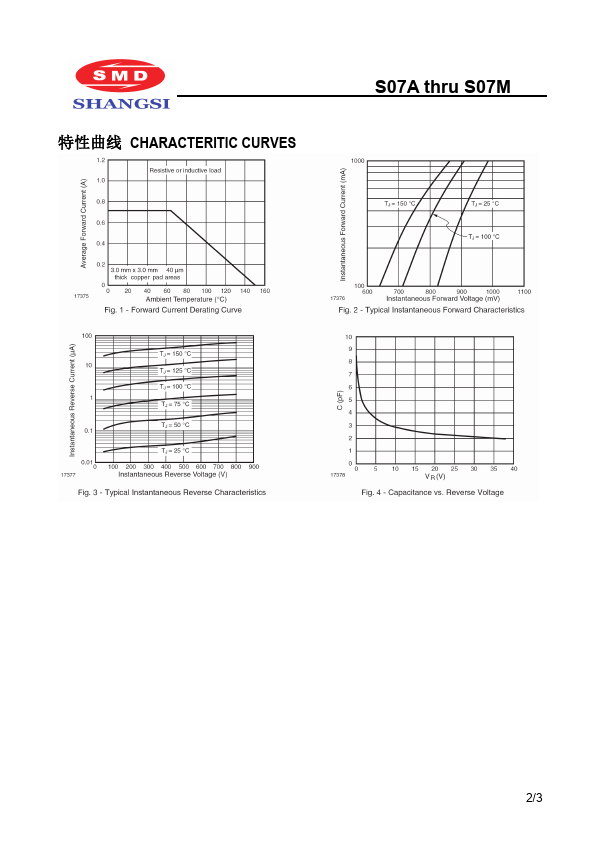

Additional preview pages of the S07K datasheet.

Product details

Features

Low reverse leakage.
Glass passivated chip junction.
High forward surge capability.
260℃/10 High temperature soldering guaranteed: 260℃/10 seconds at terminals.
RoHS 。Lead and body according with RoHS standard Mechanical Data.
: Case: Molded plastic body.
: Terminals: Solder plated.
: Polarity: Color band denotes cathode end.
: Mounting Position: Any TA = 25℃ 。 Maximum Ratings & Thermal Characteristics Ratings at 25℃ambient temperature unless.
