SZ1520, SZ153D Datasheet - SMD

SZ1520, SZ153D, Surface Mount Zener Rectifiers

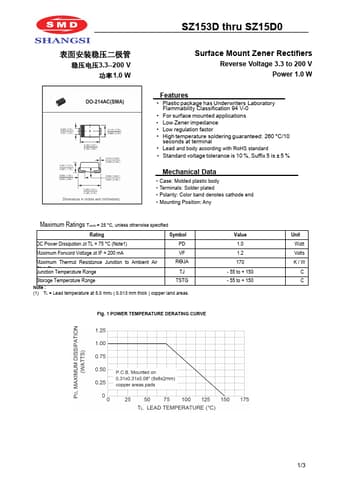

SZ153D thru SZ15D0 3.3 *200 V 1.0 W Surface Mount Zener Rectifiers Reverse Voltage 3.3 to 200 V Power 1.0 W .

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94 V-0

Applications

* Low Zener impedance
* Low regulation factor
* High temperature soldering guaranteed: 260 °C/10 seconds at terminal
* Lead and body according with RoHS standard
* Standard voltage tolerance is 10 %, Suffix 5 is ± 5 % Mechanical Data
* Case: Molded plastic

SZ153D-SMD.pdf
