SZ1530, SZ153D Datasheet - SMD

SZ1530 Surface Mount Zener Rectifiers

SZ1530 Features

* Plastic package has Underwriters Laboratory Flammability Classification 94 V-0

* For surface mounted applications

* Low Zener impedance

* Low regulation factor

* High temperature soldering guaranteed: 260 °C/10 seconds at terminal

* Lead and body acc

SZ153D-SMD.pdf

This datasheet PDF includes multiple part numbers: SZ1530, SZ153D. Please refer to the document for exact specifications by model.

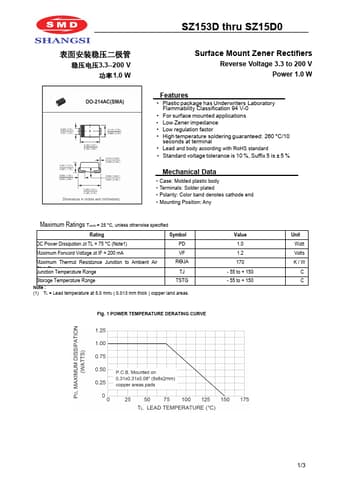

SZ1530 Datasheet Preview Page 2 SZ1530 Datasheet Preview Page 3

Datasheet Details

Part number:

SZ1530, SZ153D

Manufacturer:

SMD

File Size:

617.71 KB

Description:

Surface mount zener rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SZ1530, SZ153D.
Please refer to the document for exact specifications by model.
