CGP1303-01xx, CGP1302-01xx - (CGP13xx-01xx) EP Series In-Line Type 1.5mm Spacing

Datasheet Details

Part number	CGP1303-01xx, CGP1302-01xx
Manufacturer	SMK Electronics
File Size	82.80 KB
Description	(CGP13xx-01xx) EP Series In-Line Type 1.5mm Spacing
Datasheet	CGP1302-01xx_SMKElectronics.pdf
Note	This datasheet PDF includes multiple part numbers: CGP1303-01xx, CGP1302-01xx. Please refer to the document for exact specifications by model.

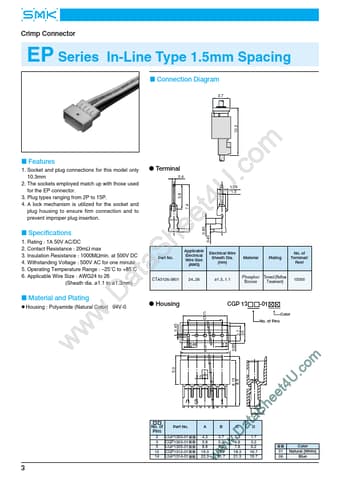

1. Socket and plug connections for this model only 10.3mm 2. The sockets employed match up with those used for the EP connector. 3. Plug types ranging from 2P to 15P. 4. A lock mechanism is utilized for the socket and plug housing to ensure firm connection and to prevent improper plug insertion. G Terminal 0.4 1. Rating : 1A 50V AC/DC 2. Contact Resistance : 20mΩ max 3. Insulation Resistance : 1000MΩmin. at 500V DC 4. Withstanding Voltage : 500V AC for one minute 5. Operating Temperature Range.
