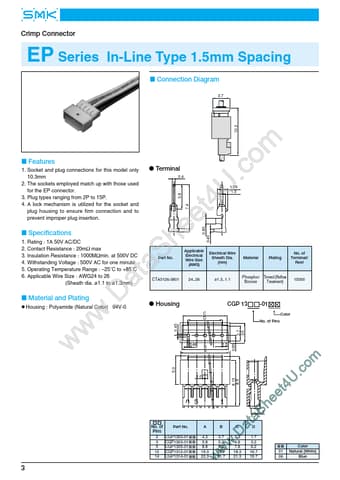

CGP1312-01xx, CGP1302-01xx (CGP13xx-01xx) EP Series In-Line Type 1.5mm Spacing

CGP1312-01xx Description

Crimp Connector EP Series In-Line Type 1.5mm Spacing I Connection Diagram 3.7 10.3 I .

CGP1312-01xx Features

* 1. Socket and plug connections for this model only 10.3mm 2. The sockets employed match up with those used for the EP connector. 3. Plug types ranging from 2P to 15P. 4. A lock mechanism is utilized for the socket and plug housing to ensure firm connection and to prevent improper plug insertion. G

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CGP1312-01xx, CGP1302-01xx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
CGP1312-01xx, CGP1302-01xx
Manufacturer
SMK Electronics
File Size
82.80 KB
Datasheet
CGP1302-01xx_SMKElectronics.pdf
Description
(CGP13xx-01xx) EP Series In-Line Type 1.5mm Spacing
Note
This datasheet PDF includes multiple part numbers: CGP1312-01xx, CGP1302-01xx.
Please refer to the document for exact specifications by model.
