CSC1010-0502F - 10P Interface Connectors

This page provides the datasheet information for the CSC1010-0502F, a member of the CSC-1010 10P Interface Connectors family.

Datasheet Summary

Features

  • s 1. 0.5mm pitch interface connector. 2. Compatible with the JEITA RC-5240 “Rectangular Connector for Mobile Phone” standard. 3. Half-locking structure. 4. Receptacles available in a wide repertoire such as standard type, short type and mid-mount type.
  • Normal and reverse types.
  • With or without a boss for determining the mounting position on PWB.
  • Shell’s PWB-mounting design : SMT or through-hole type 5. Ensured strength against skew insertion due to robust shell structure and on.

📥 Download Datasheet

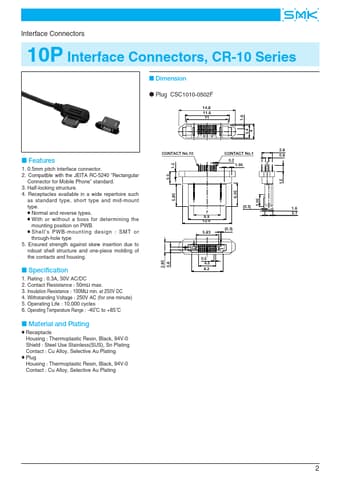

Datasheet preview – CSC1010-0502F

Datasheet Details

Part number CSC1010-0502F
Manufacturer SMK
File Size 286.78 KB
Description 10P Interface Connectors
Datasheet download datasheet CSC1010-0502F Datasheet
Additional preview pages of the CSC1010-0502F datasheet.

📁 Similar Datasheet

  • CSC1004 - Timing Controller (HWCAT)
  • CSC1008 - NPN/PNP EPITAXIAL PLANAR SILICON TRANSISTORS (ETC)
  • CSC1009 - PNP/NPN EPITAXIAL PLANAR SILICON TRANSISTORS (CDIL)
  • CSC1047 - NPN EPITAXIAL SILICON POWER TRANSISTOR (CDIL)
  • CSC1061 - NPN EPITAXIAL SILICON POWER TRANSISTOR (CDIL)
  • CSC1062AGP - Low Voltage Telephone Speech Transmission (HUAJING)
  • CSC1062GP - Low Voltage Telephone Speech Transmission (HUAJING)
  • CSC10A - Thick Film Resistor Networks (Vishay)
  • CSC10B - Thick Film Resistor Networks (Vishay)
  • CSC1162 - NPN EPITAXIAL SILICON POWER TRANSISTOR (CDIL)
Other Datasheets by SMK

    Full PDF Text Transcription

    Click to expand full text
    Interface Connectors 10P Interface Connectors, CR-10 Series ■ Dimension ● Plug CSC1010-0502F 14.8 11.6 11 1.6 3.4 4 CONTACT No.10 1.5 CONTACT No.1 0.2 1.95 ■ Features 1. 0.5mm pitch interface connector. 2. Compatible with the JEITA RC-5240 “Rectangular Connector for Mobile Phone” standard. 3. Half-locking structure. 4. Receptacles available in a wide repertoire such as standard type, short type and mid-mount type. ● Normal and reverse types. ● With or without a boss for determining the mounting position on PWB. ● Shell’s PWB-mounting design : SMT or through-hole type 5. Ensured strength against skew insertion due to robust shell structure and one-piece molding of the contacts and housing. 3.3 2.8 0.8 5.85 6.05 (0.3) 7 9.9 12.9 5.83 (0.3) 3.05 1.5 1.6 2.1 www.DataSheet.
