CSC1009 - PNP/NPN EPITAXIAL PLANAR SILICON TRANSISTORS

Datasheet Summary

Description

SYMBOL CSA709 CSC1009 VCBO 160 160 Collector -Base Voltage VCEO 150 140 Collector -Emitter Voltage VEBO 8.0 8.0 Emitter -Base Voltage IC 700 700 Collector Current PC 800 800 Collector Dissipation Tj, Tstg -55 to +150 -55 to +150 Operating And Storage Junction Temperature Range ELECTRICAL CHARACTERIS

📥 Download Datasheet

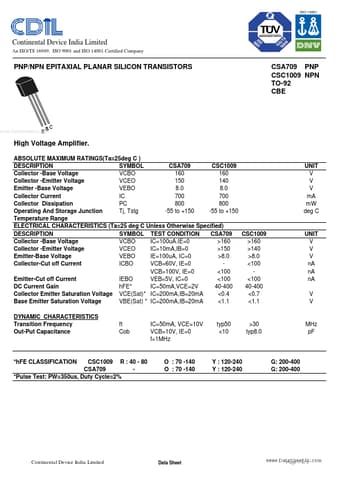

Datasheet preview – CSC1009

Datasheet Details

Part number CSC1009
Manufacturer CDIL
File Size 122.90 KB
Description PNP/NPN EPITAXIAL PLANAR SILICON TRANSISTORS
Datasheet download datasheet CSC1009 Datasheet
