CSC1213A

Low Frequency Amplifier

CDIL

CSC1213A General Description

SYMBOL CSC1213 VCEO 35 Collector Emitter Voltage VCBO Collector Base Voltage 35 Emitter Base Voltage Collector Current Collector Power Dissipation Operating And Storage Junction Temperature Range VEBO IC PC Tj, Tstg 4.0 500 400 -55 to +150 CSC1213A 50 50 6 UNIT V V V mA mW ºC ELECTRICAL CHARACTERIS.

CSC1213A Datasheet (189.44 KB)

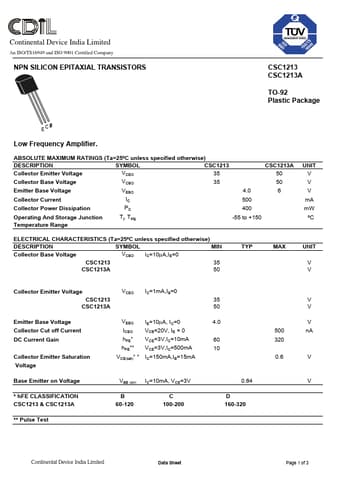

CSC1213A Datasheet Preview — Preview of CSC1213A PDF

Datasheet Details

Part number:

CSC1213A

Manufacturer:

CDIL

File Size:

189.44 KB

Description:

Low frequency amplifier.
Continental Device India Limited An ISO/TS16949 and ISO 9001 Certified Company NPN SILICON EPITAXIAL TRANSISTORS CSC1213 CSC1213A TO-92 Plastic Pack.
