CSC1220A - USB-OTG

Product Overview

📥 Download Datasheet

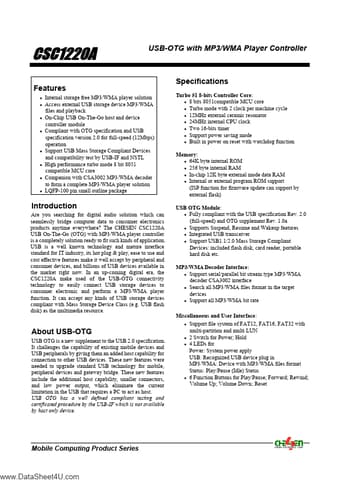

CSC1220A USB-OTG by Chesen Electronics - Datasheet Preview — Datasheet preview – CSC1220A

Datasheet Details

Part number	CSC1220A
Manufacturer	Chesen Electronics
File Size	281.82 KB
Description	USB-OTG
Datasheet	CSC1220A Datasheet
Additional preview pages of the CSC1220A datasheet.

Product details

Features

USB-OTG with MP3/WMA Player Controller Specifications Turbo 51 8-bits Controller Core:.
8 bits 8051compatible MCU core.
Turbo mode with 2 clock per machine cycle.
12MHz external ceramic resonator.
24MHz internal CPU clock.
Two 16-bits timer.
Support power saving mode.
Built in power on reset with watchdog function Memory:.
64K byte internal ROM.
256 byte internal RAM.
