CSC1221 USB-OTG Portable Hard Drive

CSC1221 Description

( DataSheet : www.DataSheet4U.com ) CSC1221 .

CSC1221 Features

* USB-OTG Portable Hard Drive with MP3 Controller Specifications CSM6x51 8-bits Controller Core:
* 8 bits 8051compatible MCU core
* Turbo mode with 2 clock per machine cycle
* 12MHz external ceramic resonator
* 24MHz internal CPU clock

CSC1221 Applications

* USB Mobile PC Free Data Bank USB-OTG Portable Hard Drive with MP3 Controller Digital Camera Direct Backup Portable Mass Storage MP3 Player CSC1221 Functional Block Diagram CSC1221 Typical Application Copyright  2004 CHESEN ELECTRONIC CORP. - All Rights Reserved TEL: 886-2-82265589 FAX：886-2-8

📥 Download Datasheet

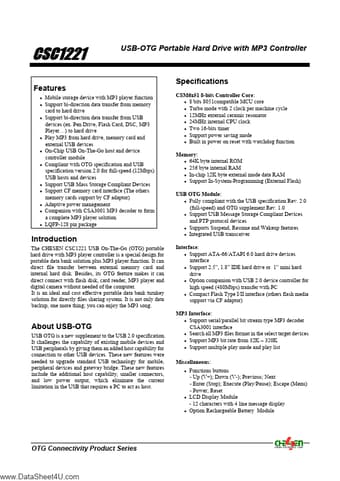

Preview of CSC1221 PDF
datasheet Preview Page 2

Datasheet Details

Part number
CSC1221
Manufacturer
Chesen Electronics
File Size
263.74 KB
Datasheet
CSC1221_ChesenElectronics.pdf
Description
USB-OTG Portable Hard Drive
