CSC12A - Thick Film Resistor Networks

Product Overview

Vishay

📥 Download Datasheet

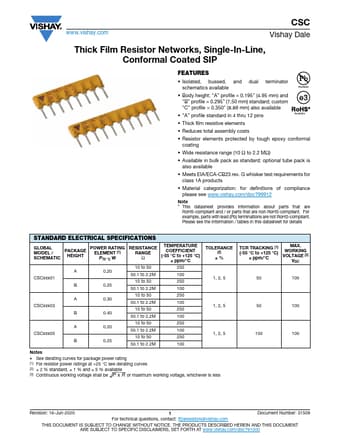

CSC12A Thick Film Resistor Networks by Vishay - Datasheet Preview — Datasheet preview – CSC12A

Datasheet Details

Part number	CSC12A
Manufacturer	Vishay
File Size	117.21 KB
Description	Thick Film Resistor Networks
Datasheet	CSC12A Datasheet
Additional preview pages of the CSC12A datasheet.

Product details

Features

Isolated, bussed, and dual terminator schematics available Available.
Body height: “A” profile = 0.195" (4.95 mm) and “B” profile = 0.295" (7.50 mm) standard; custom “C” profile = 0.350" (8.89 mm) also available.
“A” profile standard in 4 thru 12 pins Available.
Thick film resistive elements.
Reduces total assembly costs.
Resistor elements protected by tough epoxy conformal coating.
Wide resistance range (10 Ω to 2.2 MΩ).
