COM1863 - Universal Asynchronous Receiver/Transmitter

COM1863 Description

STANDARD MICROSYSTEMS CORPORATION COM 1863 COM 8018 j1PC FAMILY Universal Asynchronous Receiver/Transmitter UART .
The Universal Asynchronous Receiver/Transmitter is an MaS/LSI monol ithic circuit that performs all the receiving and transmitting functions associate.

COM1863 Features

* o Compatible with TR1863 timing o High accuracy 32X clock mode: 48.4375% Receiver Distortion Immunity and improved RDA/ROR operation (COM 8018 only) o High Speed Operation-62.5K baud, 200ns strobes o Single +5V Power Supply o Direct TTL Compatibility-no interfacing circuits required o Input pull-up

📥 Download Datasheet

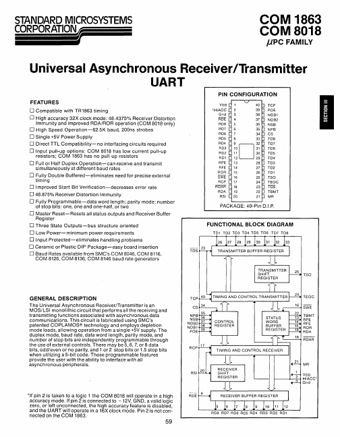

Preview of COM1863 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
COM1863
Manufacturer
SMSC
File Size
348.30 KB
Datasheet
COM1863-StandardMicrosystems.pdf
Description
Universal Asynchronous Receiver/Transmitter
