COM1553A

MIL-STD-1553/ARINC BUS CONTROLLER/RTU

COM1553A Features

* D Support of MIL-STD-1553A D Operates as a: Remote Terminal Responding Bus Controller Initiating D Performs Parallel to Serial Conversion when Transmitting D Performs Serial to Parallel Conversion when Receiving D Compatible with HD-15531 Manchester Encoder/ Decoder D All Inputs and Outputs are TTL

COM1553A General Description

The COM 1553A SMART® (Synchronous Mode Avionics Receiver/Transmitter) is a special purpose COPLAMOS N-Channel MaS/LSI device designed to provide the interface between a parallel 8-bit bus and a MIL-STD1553A serial bit stream. The COM 1553A is a double buffered serial/parallel and parallel/serial co.

COM1553A Datasheet (530.60 KB)

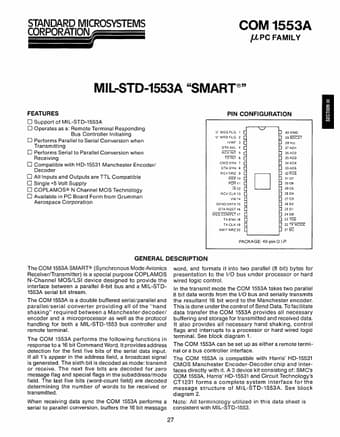

Preview of COM1553A PDF

Datasheet Details

Part number:

COM1553A

Manufacturer:

Standard Microsystems

File Size:

530.60 KB

Description:

Mil-std-1553/arinc bus controller/rtu.
