COM8136 - Dual Baud Rate Generator

COM8136 Description

STANDARD MICROSYSTEMS CORPORATIO COM 8136 COM 8136T Dual Baud Rate Generator Programmable Divider .
The Standard Microsystem's COM 8136 is an enhanced version of the COM 5036 Dual Baud Rate Generator.

COM8136 Features

* o On chip crystal oscillator or external frequency input o Single +5v power supply o Choice of 2 x 16 output frequencies o 16 asynchronousl synchronous baud rates o Direct UART/USRTIASTRO/USYNRT compatibility o Full duplex communication capability o High frequency reference output ORe-programmable R

📥 Download Datasheet

Preview of COM8136 PDF

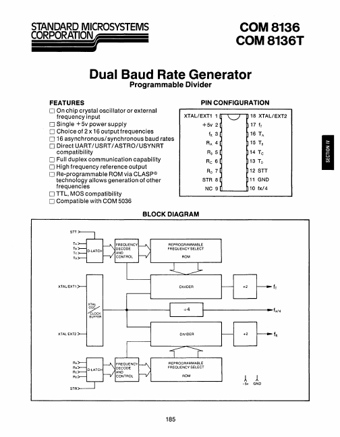

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
COM8136
Manufacturer
SMSC
File Size
253.41 KB
Datasheet
COM8136-SMSC.pdf
Description
Dual Baud Rate Generator
