COM8046

Baud Rate Generator

COM8046 Features

* o On chip crystal oscillator or external frequency input o Single + 5v power supply o Choice of 32 output frequencies o 32 asynchronousl synchronous baud rates o Direct UARTIUSRTI ASTRO/USYNRT compatibility ORe-programmable ROM via CLASp® technology allows generation of other frequencies o TTL, MOS

COM8046 General Description

The Standard Microsystems COM 8046 is an enhanced version of the COM 5046 Baud Rate Generator. It is fabricated using SMC's patented COPLAMOS® and CLASp® technologies and employs depletion mode loads, allowing operation
*from a single +5v supply. The standard COM 8046 is specifically dedicated .

COM8046 Datasheet (256.15 KB)

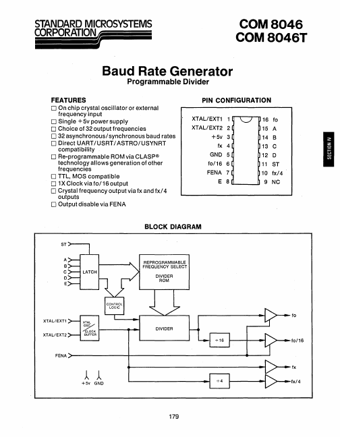

COM8046 Datasheet Preview — Preview of COM8046 PDF

Datasheet Details

Part number:

COM8046

Manufacturer:

Standard Microsystems Corporation

File Size:

256.15 KB

Description:

Baud rate generator.
