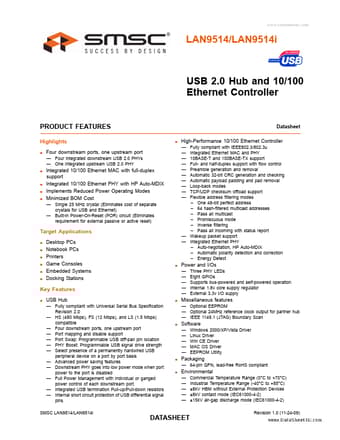

LAN9514I, LAN9514 - USB 2.0 Hub and 10/100 Ethernet Controller

Datasheet Details

Part number	LAN9514I, LAN9514
Manufacturer	SMSC
File Size	883.99 KB
Description	USB 2.0 Hub and 10/100 Ethernet Controller
Datasheet	LAN9514_SMSC.pdf
Note	This datasheet PDF includes multiple part numbers: LAN9514I, LAN9514. Please refer to the document for exact specifications by model.

at any time without notice.

Highlights.
Datasheet High-Performance 10/100 Ethernet Controller.
Fully compliant with IEEE802.3/802.3u Integrated Ethernet MAC and PHY 10BASE-T and 100BASE-TX support Full- and half-duplex support with flow control Preamble generation and removal Automatic 32-bit CRC generation and checking Automatic payload padding and pad removal Loop-back modes TCP/UDP checksum offload supp.
