LAN9115 - Highly Efficient Single-Chip 10/100 Non-PCI Ethernet Controller

LAN9115 Description

LAN9115 Highly Efficient Single-Chip 10/100 Non-PCI Ethernet Controller Highlights * Member of LAN9118 Family; optimized for medium-performa.

LAN9115 Applications

* Easily interfaces to most 16-bit embedded CPU’s
* Efficient architecture with low CPU overhead
* Integrated PHY; supports external PHY via MII interface
* Supports audio & video streaming over Ethernet: multiple standard-definition (SD) MPEG2 streams
* Mediu

📥 Download Datasheet

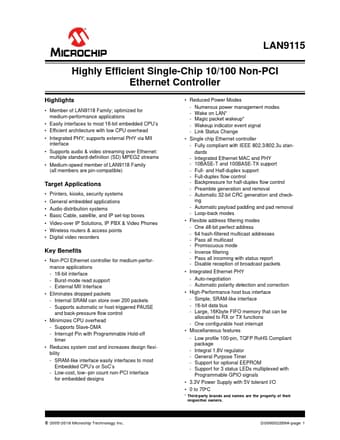

Preview of LAN9115 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LAN9115
Manufacturer
Microchip ↗
File Size
784.31 KB
Datasheet
LAN9115-Microchip.pdf
Description
Highly Efficient Single-Chip 10/100 Non-PCI Ethernet Controller
