LAN91C110

FEAST FAST ETHERNET CONTROLLER

LAN91C110 Features

* Dual Speed CSMA/CD Engine (10 Mbps and 100 Mbps) Compliant with IEEE 802.3 100BASE-T Specification Supports 100BASE-TX, 100BASE-T4 16 Bit Wide Data Path (into Packet Buffer Memory) Generic 16-bit System Level Interface Easily Adaptable to ISA, PCMCIA (16-bit CardBus), and Various CPU System Interfac

LAN91C110 General Description

The LAN91C110 is designed to facilitate the implementation of second generation Fast Ethernet PC Card adapters and other non-PCI connectivity products. The LAN91C110 is a digital device that implements the Media Access Control (MAC) portion of the CSMA/CD protocol at 10 and 100 Mbps, and couples it .

LAN91C110 Datasheet (370.72 KB)

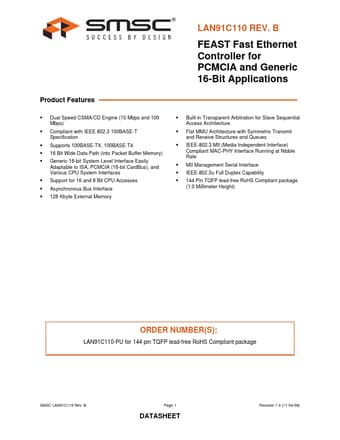

Preview of LAN91C110 PDF

Datasheet Details

Part number:

LAN91C110

Manufacturer:

SMSC Corporation

File Size:

370.72 KB

Description:

Feast fast ethernet controller.
