10D180K, Radial Lead Varistor

Radial Lead Varistor (MOV) 10D Series .
The 10D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge rating.

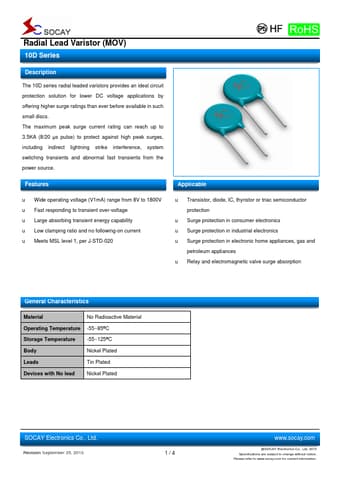

datasheet Preview Page 1 from Datasheet4u.com

10D180K-SOCAY.pdf

10D180K Datasheet Preview — Preview of 10D180K PDF

Datasheet Details

Part number:

10D180K

Manufacturer:

SOCAY

File Size:

294.23 KB

Description:

Radial Lead Varistor

Features

* u Wide operating voltage (V1mA) range from 8V to 1800V u Fast responding to transient over-voltage u Large absorbing transient energy capability u Low clamping ratio and no following-on current u Meets MSL level 1, per J-STD-020 Applicable u Transistor, diode, IC, thyristor or triac semiconductor p

Applications

* by offering higher surge ratings than ever before available in such small discs. The maximum peak surge current rating can reach up to 3.5KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients and abnormal fast transients
