10D182KJ Datasheet - SOCAY

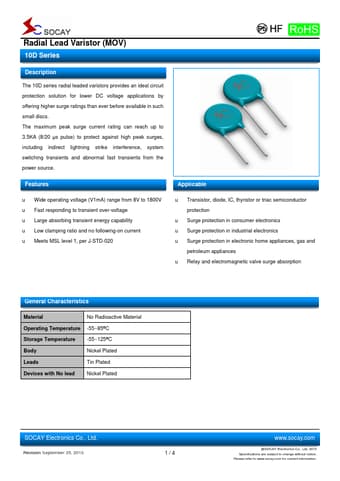

10D182KJ Radial Lead Varistor

The 10D series radial leaded varistors provides an ideal circuit protection solution for lower DC voltage applications by offering higher surge ratings than ever before available in such small discs. The maximum peak surge current rating can reach up to 3.5KA (8/20 μs pulse) to protect against high .

10D182KJ Features

* u Wide operating voltage (V1mA) range from 8V to 1800V u Fast responding to transient over-voltage u Large absorbing transient energy capability u Low clamping ratio and no following-on current u Meets MSL level 1, per J-STD-020 Applicable u Transistor, diode, IC, thyristor or triac semiconductor p

10D182KJ Datasheet (294.23 KB)
