SMDJ85A, SMDJ5.0, Surface Mount Transient Voltage Suppressors

Surface Mount Transient Voltage Suppressors (TVS) SMDJ Series 5.0 To 440 V 3000W .
The SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient vo.

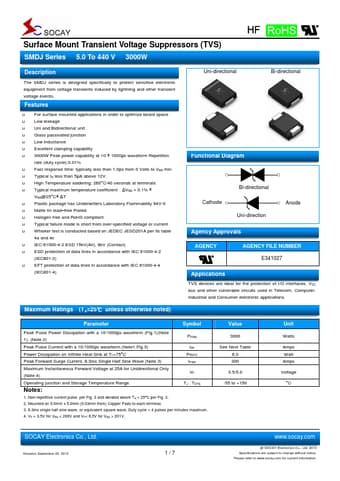

datasheet Preview Page 1 from Datasheet4u.com

SMDJ5.0-SOCAY.pdf

SMDJ85A Datasheet Preview — This datasheet PDF includes multiple part numbers: SMDJ85A, SMDJ5.0. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SMDJ85A, SMDJ5.0

Manufacturer:

SOCAY

File Size:

604.07 KB

Description:

Surface Mount Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: SMDJ85A, SMDJ5.0.
Please refer to the document for exact specifications by model.

Applications

* in order to optimize board space u Low leakage u Uni and Bidirectional unit u Glass passivated junction u Low inductance u Excellent clamping capability u 3000W Peak power capability at 10 × 1000µs waveform Repetition rate (duty cycle):0.01% u Fast response time: typically less than 1.0ps from 0 Vol
