CXD4103R

Signal Processor LSI for Single CCD Color Camera

SONY

CXD4103R Features

* Generates timing pulses to drive the single CCD image sensor Built-in H driver for CCD image sensor Luminance/chroma signal processing Supports NTSC/PAL modes Supports 510H/760H system CCD image sensor Built-in 10-bit A/D converter Built-in EVR (3ch) Analog composite output Built-in digi

CXD4103R General Description

The CXD4103R is a signal processor LSI for Ye, Cy, Mg and G single CCD color cameras. In addition to basic camera signal processing functions, it includes an AE/AWB detection circuit, a sync signal generation circuit and an external sync circuit, etc. This chip also has a built-in microcontroller to.

CXD4103R Datasheet (953.15 KB)

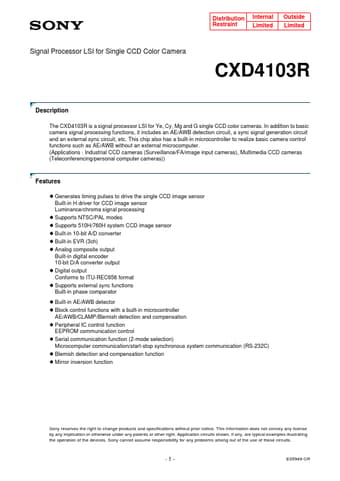

CXD4103R Datasheet Preview — Preview of CXD4103R PDF

Datasheet Details

Part number:

CXD4103R

Manufacturer:

SONY

File Size:

953.15 KB

Description:

Signal processor lsi for single ccd color camera.
