SNC542

Two Channel Direct Drive Speech Controller

SONiX

SNC542 Features

* Single power supply 2.4V

* 5.5V 16 seconds voice capacity are provided(@6KHZ sample rate) Built in a 4-bit tiny controller One 4-bit input port and two 4-bit I/O ports are provided 128

* 4 bits RAM are provided 52K

* 10 ROM size are provided for voice data and program Maximum 16k program

SNC542 General Description

I Bit3 ~ Bit0 of Input port 1 I/O Bit3 ~ Bit0 of I/O port 2 I/O Bit3 ~ Bit0 of I/O port 3 P Positive power supply P Negative power supply I Reset pin (active high) O Oscillator / Crystal Out O Positive Output of PWM or DA output O Negative Output of PWM Ver: 1.2 2 November 26, 2002 SNC542 Two Ch.

SNC542 Datasheet (281.22 KB)

SNC542 Datasheet Preview — Preview of SNC542 PDF

Datasheet Details

Part number:

SNC542

Manufacturer:

SONiX

File Size:

281.22 KB

Description:

Two channel direct drive speech controller.

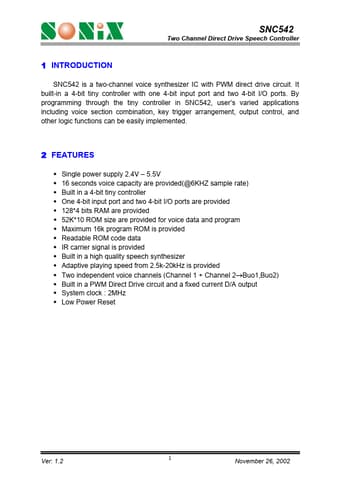

SNC542 Two Channel Direct Drive Speech Controller 1 INTRODUCTION SNC542 is a two-channel voice synthesizer IC with PWM direct drive circuit. It built-.
