SNC549

Two Channel Direct Drive Speech Controller

SNC549 Features

* Single power supply 2.4V

* 5.5V 16 seconds voice capacity are provided(@6KHZ sample rate) Built in a 4-bit tiny controller One 4-bit input port, two 4-bit output ports and three 4-bit I/O ports are provided 128

* 4 bits RAM are provided 52K

* 10 ROM size are provided for voice data and p

SNC549 General Description

I Bit3 ~ Bit0 of Input port 1 I/O Bit3 ~ Bit0 of I/O port 2 I/O Bit3 ~ Bit0 of I/O port 3 O Bit3 ~ Bit0 of Output port 4 O Bit3 ~ Bit0 of Output port 5 I/O Bit3 ~ Bit0 of I/O port 6 P Positive power supply P Negative power supply I Reset pin (active high) O Oscillator / Crystal Out O Positive Output.

SNC549 Datasheet (284.93 KB)

Preview of SNC549 PDF

Datasheet Details

Part number:

SNC549

Manufacturer:

SONiX

File Size:

284.93 KB

Description:

Two channel direct drive speech controller.
SNC549 Two Channel Direct Drive Speech Controller 1 INTRODUCTION SNC549 is a two-channel voice synthesizer IC with PWM direct drive circuit. It built-.

📁 Related Datasheet

SNC542 Two Channel Direct Drive Speech Controller (SONiX)

SNC543 Two Channel Direct Drive Speech Controller (SONiX)

SNC548 Two Channel Direct Drive Speech Controller (SONiX)

SNC510 One Channel Direct Drive Speech Controller (SONiX)

SNC511 One Channel Direct Drive Speech Controller (SONiX)

SNC520 One Channel Direct Drive Speech Controller (SONiX)

SNC521 One Channel Direct Drive Speech Controller (SONiX)

SNC532 Two Channel Direct Drive Speech Controller (SONiX)

SNC533 Two Channel Direct Drive Speech Controller (SONiX)

SNC538 Two Channel Direct Drive Speech Controller (SONiX)

TAGS

SNC549 Two Channel Direct Drive Speech Controller SONiX

Image Gallery

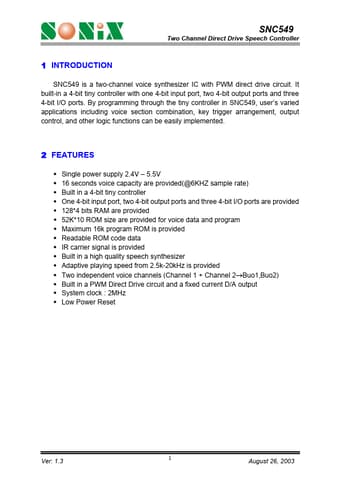

SNC549 Datasheet Preview Page 2 SNC549 Datasheet Preview Page 3
