AM42BDS640AG - Stacked Multi-Chip Package (MCP) Flash Memory and SRAM

Description

The Am29BDS640G is a 64 Mbit, 1.8 Volt-only, simultaneous Read/Write, Burst Mode Flash memory device, organized as 4,194,304 words of 16 bits each.

This device uses a single VCC of 1.65 to 1.95 V to read, program, and erase the memory array.

Features

  • Power supply voltage of 1.65 to 1.95 volt.
  • High performance.
  • Access time as fast as 70 ns.
  • Power dissipation (typical values, CL = 30 pF).
  • Burst Mode Read: 10 mA Simultaneous Operation: 25 mA Program/Erase: 15 mA Standby mode: 0.2 µA.
  • Package.
  • 93-Ball FBGA.

📥 Download Datasheet

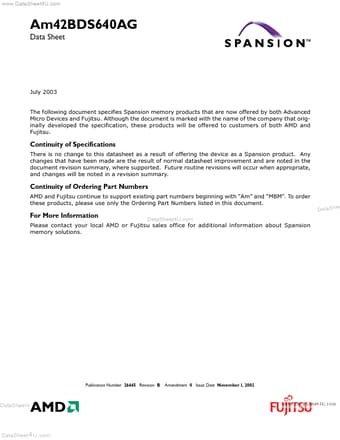

Datasheet preview – AM42BDS640AG

Datasheet Details

Part number AM42BDS640AG
Manufacturer SPANSION
File Size 1.53 MB
Description Stacked Multi-Chip Package (MCP) Flash Memory and SRAM
Datasheet download datasheet AM42BDS640AG Datasheet
Additional preview pages of the AM42BDS640AG datasheet.
