BR5010L, BR5005L Datasheet - SPS

BR5010L SINGLE-PHASE BRIDGE RECTIFIER

BR5010L Features

* Plastic case with heatsink for heat dissipation

* Surge overload -500 Amperes peak

* The plastic package has UL flammability classification 94V-0 MECHANICAL DATA

* Case:Molded plastic with heatsink integrally mounted in the bridge encapsulation

* Weight:1 ounce,30 grams.

* Mounti

BR5005L-SPS.pdf

This datasheet PDF includes multiple part numbers: BR5010L, BR5005L. Please refer to the document for exact specifications by model.

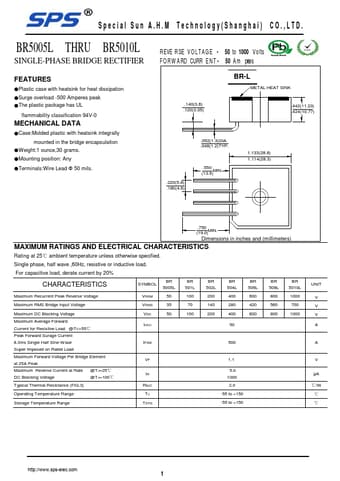

BR5010L Datasheet Preview Page 2

Datasheet Details

Part number:

BR5010L, BR5005L

Manufacturer:

SPS

File Size:

207.98 KB

Description:

Single-phase bridge rectifier.

Note:

This datasheet PDF includes multiple part numbers: BR5010L, BR5005L.
Please refer to the document for exact specifications by model.
