BR5010L-G, BR5005L-G - Silicon Bridge Rectifiers

Comchip

Datasheet Details

Part number	BR5010L-G, BR5005L-G
Manufacturer	Comchip
File Size	65.51 KB
Description	Silicon Bridge Rectifiers
Datasheet	BR5005L-G-Comchip.pdf
Note	This datasheet PDF includes multiple part numbers: BR5010L-G, BR5005L-G. Please refer to the document for exact specifications by model.

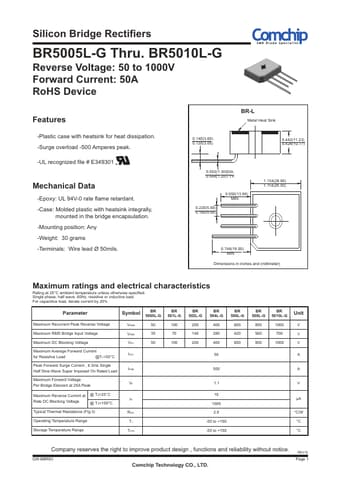

-Plastic case with heatsink for heat dissipation. -Surge overload -500 Amperes peak. -UL recognized file # E349301 R Mechanical Data -Epoxy: UL 94V-0 rate flame retardant. -Case: Molded plastic with heatsink integrally, mounted in the bridge encapsulation. -Mounting position: Any -Weight: 30 grams -Terminals: Wire lead Ø 50mils. 0.140(3.60) 0.120(3.05) BR-L Metal Heat Sink 0.442(11.23) 0.424(10.77) 0.052(1.30)DIA. 0.048(1.20)TYP. 0.220(5.60) 0.180(4.60) 0.550(13.90) MIN. 1.134(28.80) 1.114.
