SM280W, SM220W - Surface Mount Schottky Barrier Rectifier

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM280W, SM220W. Please refer to the document for exact specifications by model.

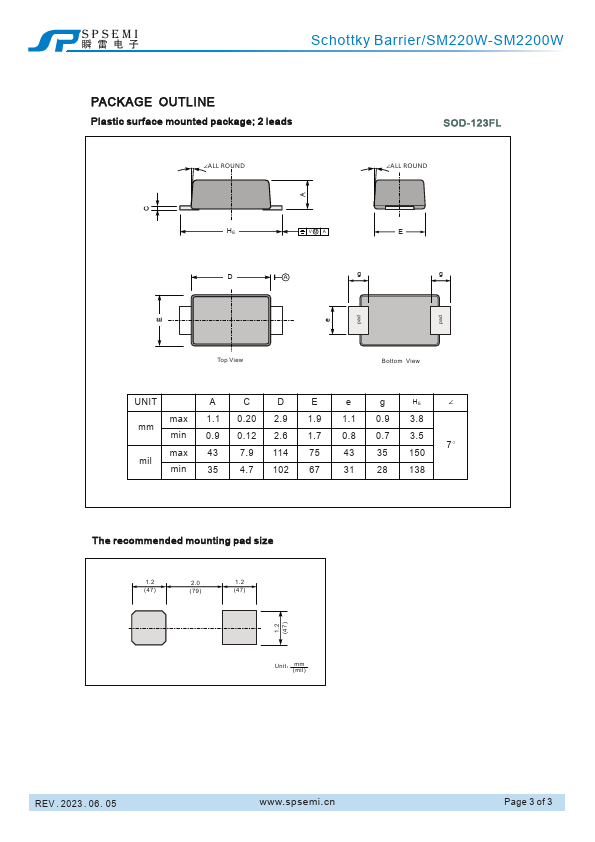

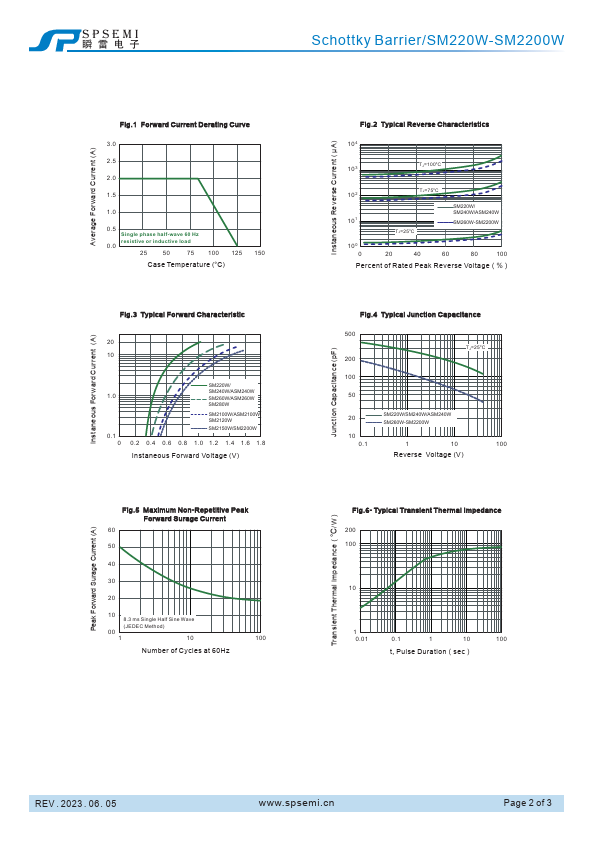

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number SM280W, SM220W
Manufacturer SPSEMI
File Size 193.20 KB
Description Surface Mount Schottky Barrier Rectifier
Datasheet download datasheet SM220W-SPSEMI.pdf
Note This datasheet PDF includes multiple part numbers: SM280W, SM220W.
Please refer to the document for exact specifications by model.

SM280W Product details

Description

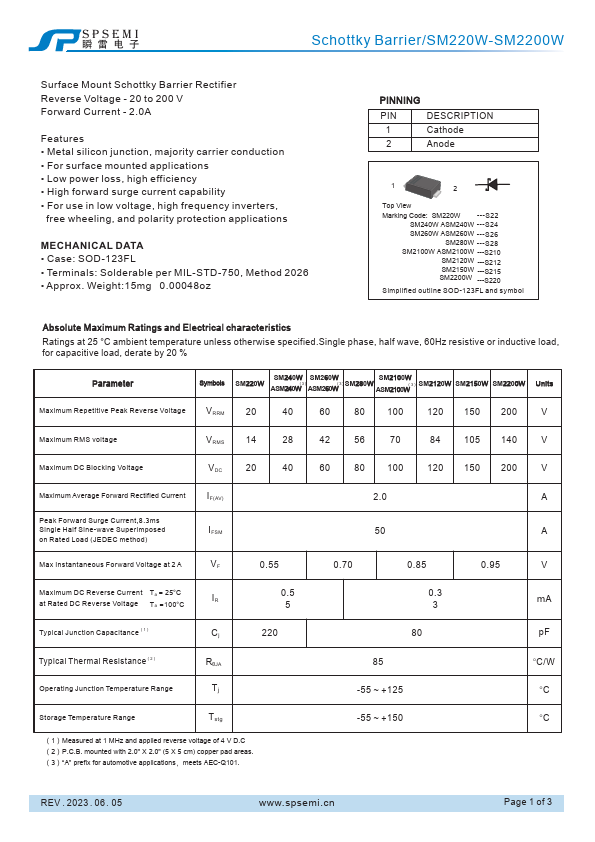

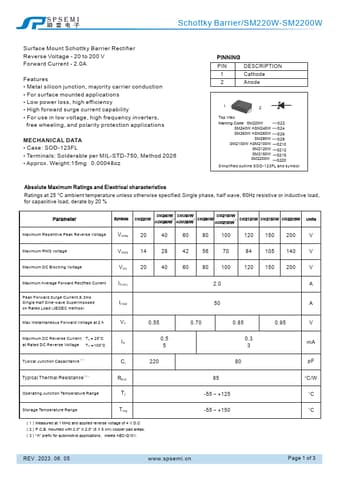

1 Cathode 2 Anode 1 2 Top View Marking Code: SM220W ---S22 SM240W ASM240W ---S24 SM260W ASM260W ---S26 SM280W ---S28 SM2100W ASM2100W ---S210 SM2120W ---S212 SM2150W ---S215 SM2200W ---S220 Simplified outline SOD-123FL and symbol Absolute Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60Hz resistive or inductive load, for capacitive load, derate by 20 % Parameter Symbols SM240W SM260W SM2100W SM
