SDR2050UF 20 AMP Ultra Fast Rectifier

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number / Ordering Information 1/ SDR20 __ __ __ __ │ │ │ └ Screening2/ │││ __ = Not Screened │││ TX = TX Level │││ TXV = TXV │││ S = S Level │ │ └ Package Type ││ = Axial ││ BT = Cathode Button │ │ │ └ BTR = Anode Button Reverse Recovery │ └ UF = Ultra Fast Voltage 30 = 300 V 50 = 500.

SDR2050UF Features

* Replaces DO-4, DO-5, and TO-25X type devices

* Ultra Fast Recovery

* Low Reverse Leakage Current

* Hermetically Sealed Void-Free Construction3/

* High Surge Rating

* Low Thermal Resistance

* Higher Voltages Available - Contact Factory

* Replacement for MSARS20E060G

SDR2030UF-SSDI.pdf

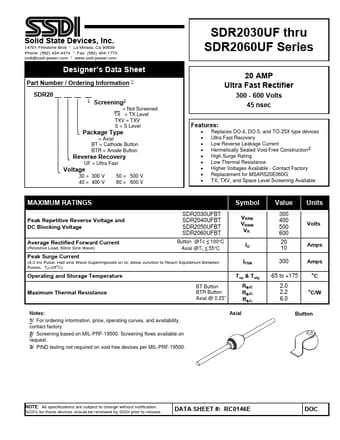

SDR2050UF Datasheet Preview — This datasheet PDF includes multiple part numbers: SDR2050UF, SDR2030UF. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDR2050UF, SDR2030UF

Manufacturer:

SSDI

File Size:

96.99 KB

Description:

20 amp ultra fast rectifier.

Note:

This datasheet PDF includes multiple part numbers: SDR2050UF, SDR2030UF.
Please refer to the document for exact specifications by model.
