SDR2060UFBT Ultra Fast Rectifier

Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com Designer’s Data Sheet Part Number / Ordering Information 1/ SDR20 __ __ __ __ │ │ │ └ Screening2/ │││ __ = Not Screened │││ TX = TX Level │││ TXV = TXV │││ S = S Level │ │ └ Package Type ││ BT = Button │ └ Reverse Recovery │ UF = Ultra Fast └ Voltage 60 = 600 V SDR2060UFBT 20 AMP Ultra Fast Rectifier 600 Volt 60 .

SDR2060UFBT Features

* Replaces DO-4 and DO-5

* Ultra Fast Recovery

* Low Reverse Leakage Current

* Hermetically Sealed Void-Free Construction3/

* Monolithic Single Chip Construction

* High Surge Rating

* Low Thermal Resistance

* Higher Voltages Available

SDR2060UFBT Datasheet (80.83 KB)

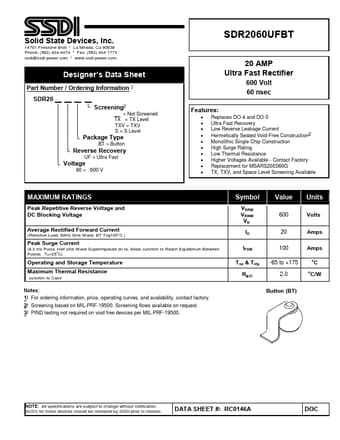

SDR2060UFBT Datasheet Preview — Preview of SDR2060UFBT PDF

Datasheet Details

Part number:

SDR2060UFBT

Manufacturer:

SSDI

File Size:

80.83 KB

Description:

Ultra fast rectifier.
