SDR622-28 - (SDR620-28 - SDR622-28) Hyper Fast Rectifier

Product Overview

SSDI

Part number	SDR622-28
Manufacturer	SSDI
File Size	66.25 KB
Description	(SDR620-28 - SDR622-28) Hyper Fast Rectifier
Datasheet	SDR622-28 Datasheet
Note	This datasheet PDF includes multiple part numbers: SDR622-28, SDR620-28. Please refer to the document for exact specifications by model.

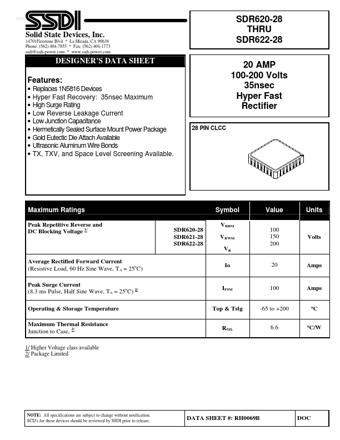

Additional preview pages of the SDR622-28 datasheet.

Replaces 1N5816 Devices.
Hyper Fast Recovery: 35nsec Maximum.
High Surge Rating.
Low Reverse Leakage Current.
Low Junction Capacitance.
Hermetically Sealed Surface Mount Power Package.
Gold Eutectic Die Attach Available.
Ultrasonic Aluminum Wire Bonds.
TX, TXV, and Space Level Screening Available. Maximum Ratings Peak Repetitive Reverse and DC Blocking Voltage 1/ SDR620-28 SDR621-28 SDR622-28 Symbol VRRM VRWM VR.
