* Isolated Package
* Reverse Recovery Time 35 ns Max
* PIV 200 Volts
* Low Reverse Leakage
* Hermetically Sealed
* Single Chip Construction
* -65ºC to 200ºC Operating and Storage Temperature
* Isolated Version of 1N5812-16 DO-4
* TX, TXV, and S-Level Screening Av

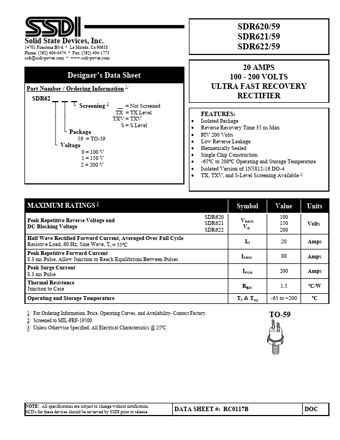

SDR622-59 Datasheet (137.44 KB)
SDR622-59
SSDI
137.44 KB
Ultra fast recovery rectifier.
Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.
