SDR75U20 (SDR75U20 - SDR75U50) ULTRAFAST RECOVERY HIGH POWER RECTIFIER

SDR75U20 Description

SDR75U20 Solid State Devices, Inc.14701 Firestone Blvd * La Mirada, CA 90638 Phone: (562) 404-4474 * Fax: (562) 404-1773 ssdi@ssdi-power.com .

SDR75U20 Features

* Low Reverse Leakage Current Single Chip Construction PIV to 500V Hermetically Sealed Low Thermal Resistance Higher Voltage Devices Up to 1KV Available
* Fast and Ultra Fast Recovery Versions Available
* For Reverse Polarity Add Suffix “R”

📥 Download Datasheet

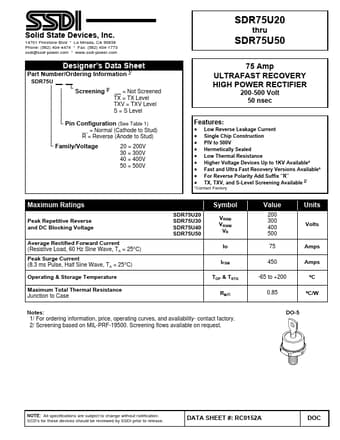

Preview of SDR75U20 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SDR75U20
Manufacturer
SSDI
File Size
148.86 KB
Datasheet
SDR75U20_SSDI.pdf
Description
(SDR75U20 - SDR75U50) ULTRAFAST RECOVERY HIGH POWER RECTIFIER
