SDR75U30 (SDR75U20 - SDR75U50) ULTRAFAST RECOVERY HIGH POWER RECTIFIER

SDR75U30 Features

* Low Reverse Leakage Current Single Chip Construction PIV to 500V Hermetically Sealed Low Thermal Resistance Higher Voltage Devices Up to 1KV Available

* Fast and Ultra Fast Recovery Versions Available

* For Reverse Polarity Add Suffix “R”

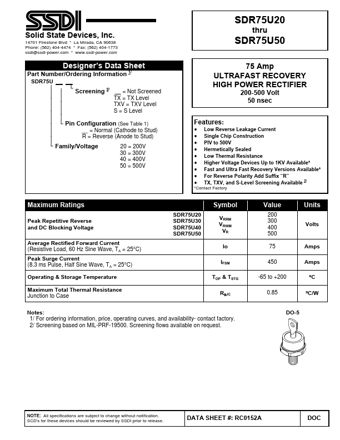

SDR75U20_SSDI.pdf

SDR75U30 Datasheet Preview — This datasheet PDF includes multiple part numbers: SDR75U30, SDR75U20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SDR75U30, SDR75U20

Manufacturer:

SSDI

File Size:

148.86 KB

Description:

(sdr75u20 - sdr75u50) ultrafast recovery high power rectifier.

Note:

This datasheet PDF includes multiple part numbers: SDR75U30, SDR75U20.
Please refer to the document for exact specifications by model.
