SHA489 Datasheet - SSDI

SHA489 IGBT REPLACEMENT ULTRA FAST SWITCHING DEVICE

SHA489 Features

* Power Dissipation 1 kW @ 25oC Case Extremely Large SOA Ultra Fast Switching, ts = 100 ns typical (Outperforms IGBT) OFHC Copper Package Ideal for Motor Control/Power Systems Extremely Low RθJC: 0.1oC/W Can Be Driven From Low Level Logic Higher Current and Voltages Available. Consult Factory Alterna

SHA489 Datasheet (194.83 KB)

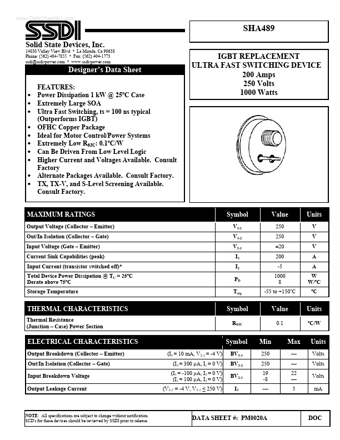

SHA489 Datasheet Preview — Preview of SHA489 PDF

Datasheet Details

Part number:

SHA489

Manufacturer:

SSDI

File Size:

194.83 KB

Description:

Igbt replacement ultra fast switching device.
