SPD5811 HYPERFAST RECOVERY RECTIFIER

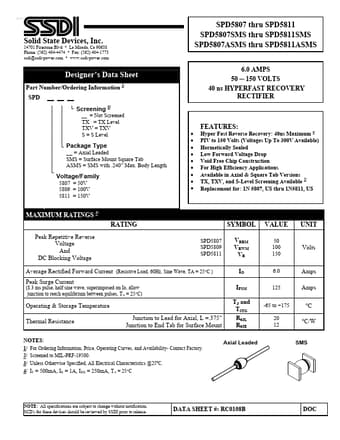

www.DataSheet4U.com Solid State Devices, Inc. 14701 Firestone Blvd La Mirada, Ca 90638 Phone: (562) 404-4474 Fax: (562) 404-1773 ssdi@ssdi-power.com www.ssdi-power.com SPD5807 thru SPD5811 SPD5807SMS thru SPD5811SMS SPD5807ASMS thru SPD5811ASMS 6.0 AMPS 50 ─ 150 VOLTS 40 ns HYPERFAST RECOVERY RECTIFIER Designer’s Data Sheet Part Number/Ordering Information 1/ SPD __ __ __ │ │ │ │ │ │ │ │ │ │ └ │ └ Screening 2/ │ __ = Not Screened │ TX = TX Level │ TXV = TXV │ S = S Level │ └.

SPD5811 Features

* MAXIMUM RATINGS 3/ RATING Peak Repetitive Reverse Voltage And DC Blocking Voltage SPD5807 SPD5809 SPD5811 SYMBOL VRRM VRWM VR IO IFSM TJ and TSTG RθJL RθJE Axial Leaded VALUE 50 100 150 6.0 125 -65 to +175 20 12 UNIT Volts Average Rectified Forward Current (Resistive Load, 60Hz, Sine Wave, TA
