STX7905 1 AMP 600 VOLTS NPN TRANSISTOR

STX7905 Description

PRELIMINARY STX7905 SOLID STATE DEVICES, INC.14005 Stage Road * Santa Fe Springs, Ca 90670 Phone: (562) 404-4474 * Fax: (562) 404-1773 DESI.

STX7905 Features

* BVCBO 600V. Fast Switching. Low Leakage. Low Saturation Voltage. 200oC Operating, Gold Eutectic Die Attach. Designed for Complementary Use with STX6905. MAXIMUM RATINGS Collector-Emitter Voltage RBE = 1 kOhms Collector-Base Voltage Emitte

📥 Download Datasheet

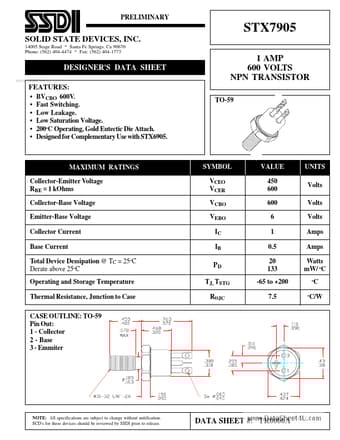

Preview of STX7905 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STX7905
Manufacturer
SSDI
File Size
68.57 KB
Datasheet
STX7905_SSDI.pdf
Description
1 AMP 600 VOLTS NPN TRANSISTOR
