STX715

NPN low voltage transistor

ST Microelectronics

STX715 Features

* Low voltage small device for through-hole assembly

* High ruggedness Applications

* Voltage regulation

* Relay driver

* Generic switch Description The STX715 is a NPN transistor manufactured using planar technology and it is housed in TO-92 small plastic package. TO-92 TO-92(

STX715 General Description

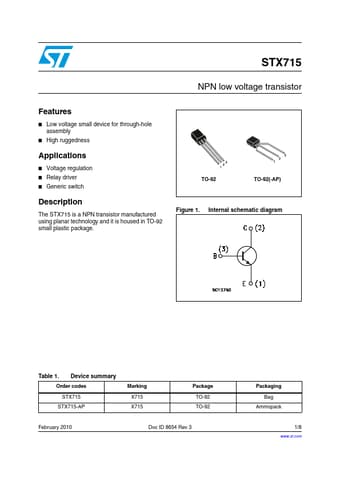

The STX715 is a NPN transistor manufactured using planar technology and it is housed in TO-92 small plastic package. TO-92 TO-92(-AP) Figure 1. Internal schematic diagram Table 1. Device summary Order codes STX715 STX715-AP Marking X715 X715 Package TO-92 TO-92 February 2010 Doc ID 8654 Rev .

STX715 Datasheet (94.37 KB)
