STX117

Complementary power Darlington transistors

STX117 Features

* Good hFE linearity

* High fT frequency

* Monolithic Darlington configuration with integrated antiparallel collector-emitter diode Application

* Linear and switching industrial equipment Description The devices are manufactured in planar technology with “base island” layout and mono

STX117 General Description

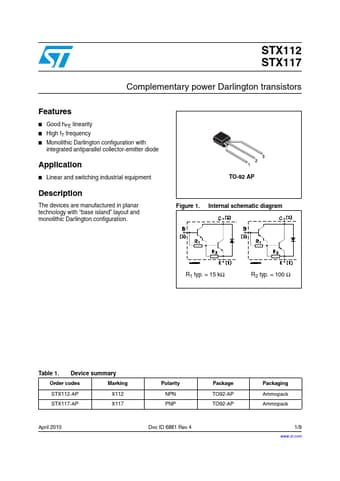

The devices are manufactured in planar technology with “base island” layout and monolithic Darlington configuration. . TO-92 AP Figure 1. Internal schematic diagram R1 typ. = 15 kΩ R2 typ. = 100 Ω Table 1. Device summary Order codes Marking STX112-AP X112 STX117-AP X117 April 2010 Polari.

STX117 Datasheet (309.25 KB)

Preview of STX117 PDF

Datasheet Details

Part number:

STX117

Manufacturer:

STMicroelectronics ↗

File Size:

309.25 KB

Description:

Complementary power darlington transistors.
